Pneumatic Riveter,riveting Machine,orbital Riveting Machine

Pneumatic Riveter,riveting Machine,orbital Riveting Machine photo-1

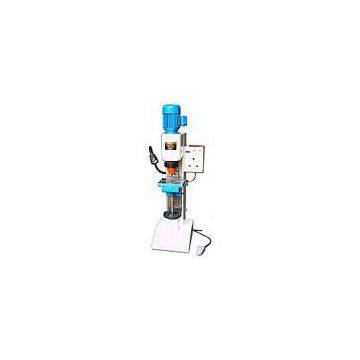

Pneumatic Riveter,riveting Machine,orbital Riveting Machine photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Rivet
Place of Origin:
China
Model Number:
BM9Q
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Brand Name Rivet
Place of Origin China
Model Number BM9Q

BM9Q (Orbital pneumatic riveting machine)

Characteristics:

■Medium sized vertical style

■Max. processing Dia.Φ9mm

■Pneumatic driven

■Pressure by stepless regulation

■Rotary part protected

■Double-hand buttons or foot pedal

■Set process time as will

■Automatic and manual functions


Scope of application: instrumentation, hardware, electronic products, automobile parts etc Customized available.

      The model of BM9Q is a medium sized orbital riveting machine with pneumatic force,vertical style, machining process is stable and perfect result due to applied advanced orbital technology, T-slot fixing the clamping apparatus available, positioning hole is coaxial with spindle to insure the riveting accuracy. Pneumatic system equipped with two way throttle valves to control stroke speed and return speed effectively. Power head fixed and bench adjustment up and down to meet different workpiece's body and shape. Electricity control system equipped with counter and time relay to conveniency operation.

Specification:

▲Max riveting diameter               Ф 9mm ( solid steel rivet ) ▲Max riveting pressure                14Kn

▲Stroke                                        30mm

▲Available working space            245mm

▲Throat depth                             160mm

▲Riveting tool length                  50mm

▲Eccentric angle                          4°

▲Motive force                               Pneumatic

▲Workbench dimensions            260mm×200mm

▲Power                                        0.55Kw

▲Physical size                             700mm×500mm×1570mm ▲Net weight                                300Kg
