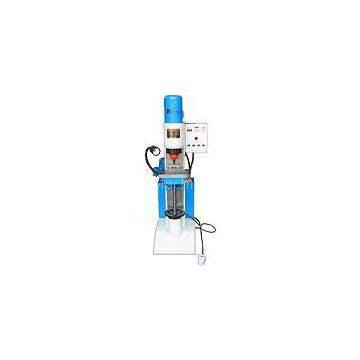

BM16 (Orbital riveting machine)
Characteristics:
■Vertical style
■Workbench movable
■Max riveting diameter Ф 16mm
■Pressure by stepless regulation
■Rotary part protected
■Double-hand buttons or foot pedal
■Set processing time at free
Scope of applications :Daily hardware, electronic products, automobile parts etc.
Customized available
BM16 machine is a medium-sized orbital hydraulic riveting machine, besides the utilization of the fifth generation technology, the machine is also equipped with screw lift table (Stationary Base part), the table has a trapezoidal groove clamps for the riveting die. The center of the working station is aligned with the spindle bore axis and it's used to better positioning the fixture. The riveting speed can be easily controlled with the installation of one-way valve oil. The digital electronic control time relay and digital counters has been installed to ease the user control. Oil tank can be combined or disassembled with the machine for easy transportation and assembly. Riveting speed can be easily controlled by Fluid path-way valve. The workbench is equipped with long stroke screw lift system and made convenience for the adjustment of the machine. As a result of the above function and radial design, the riveting operation goes with ease and the workpiece finishing is created smoothly.
Technical parameters:
▲Max riveting diameter Ф16 mm (solid steel rivet )
▲Max riveting pressure 34Kn
▲Stroke Length Range 30 mm
▲Working space 200 mm
▲Throat depth 195 mm
▲ Spindle eccentricity 4º
▲Motive force Hydraulic
▲Oil-tank volume 60 Liters
▲Dimension of workbench 350 mm×250 mm
▲Power 2.2Kw
▲Physical size 850 mm×600 mm×1650 mm ▲Net weigh 590Kg
