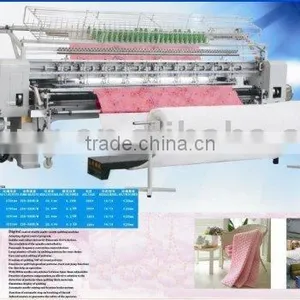

Computerized Multi Needle Shuttle Quilting Machine

Computerized Multi Needle Shuttle Quilting Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CHISHING
Model Number:
CS128
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name CHISHING
Model Number CS128

Specifications

ChiShing brand quilting machine is your ideal choice to processing the garments.



ChiShing brand quilting machine is your ideal choice to processing the garments. It adopts computer control .It is easy to operate and in a few minutes you can decide the orders according to your customer's need.the thickness can reach400g/m2 and the speed can reach 500n/m. such as the diamond pattern it's output can reach 70 meter per hour.the stitch 2-6 mm can be adjusted.



NOTE:Machines of non-standard specifications can also be nanufactured by order of customers with specific requirements.

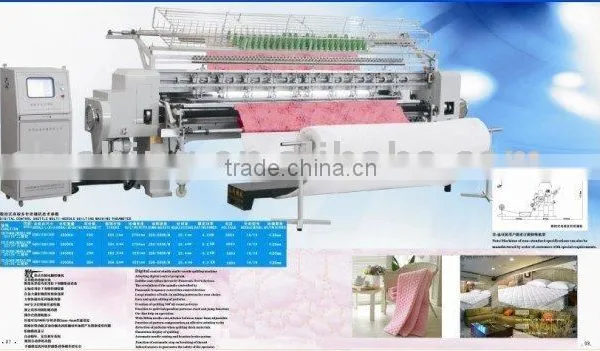

Computerized multi needle shuttle Quilting Machine



 Description
CSDB128"-3 digital control quilting machine
1. D: Digital control; B: Big shuttle (HQ10 Japanese shuttle )
2. 128": 128inch width (3251mm)
3. 3: Three needle row
4. Overall dimensions: 5600*1200*1650mm
5: Weight: 4500kg
6: Running speed: 200-500r/m
7: Needle distance: 25.4mm
8. Rating power: 6.2kw
9. Thickness: ≤30mm
10. Max. Pattern size: 12inch by 12inch
*This quilting machine Adopting digital control program.
*Saddles and rollers driven by Panasonic servo devices.

*The revolution of the spindle controlled by Panasonic frequency conversion control devices.

*Large number of built-in quilting patterns for your choice. It has saved  200 patterns for your choice and you can design by yourself also.

*Easy and quick make new designs.

*360 degrees quilting

*Tack and jump function included

*stitches between 2mm-6mm adjustable.

*Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick materials.

*Simulation display of quilting.

*Automatic needle raising and location brake system.

*Function of automatic stop on breaking of thread(optional)

*Infrared sensors to guarantee the safety of the operator



*Function of automatic stop on breaking of thread(optional)

*Infrared sensors to guarantee the safety of the operator
