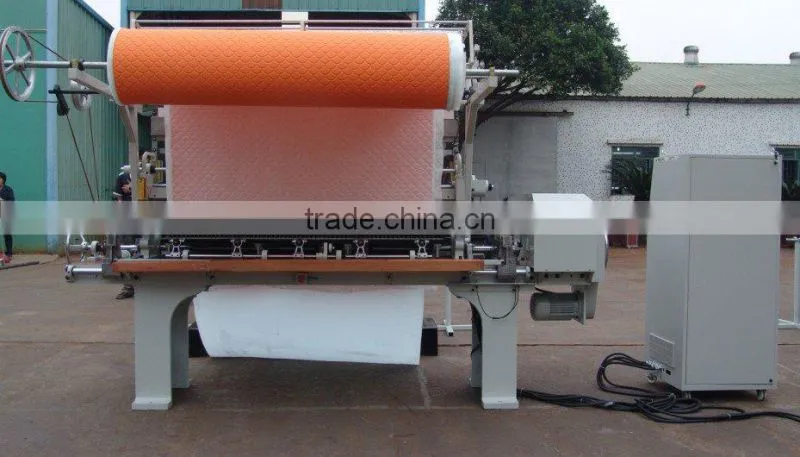

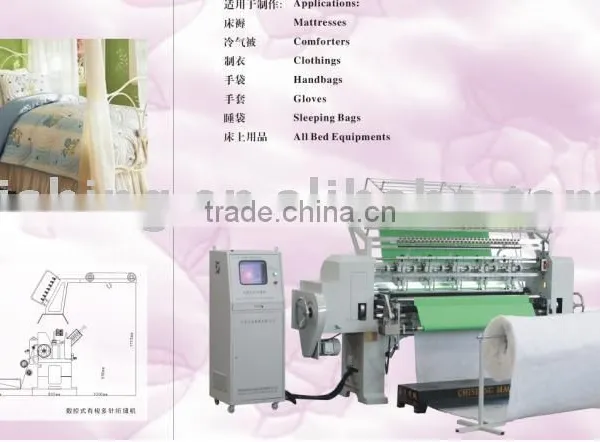

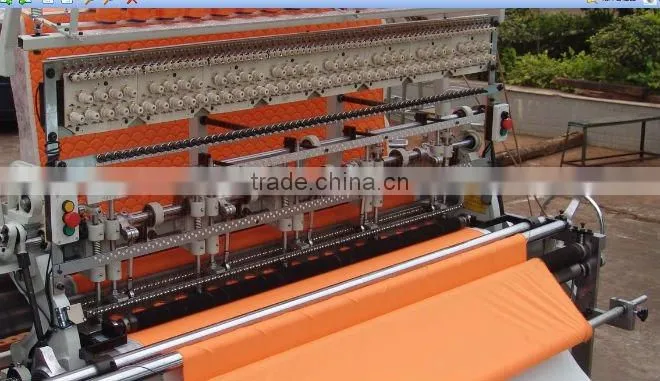

It is widely used for quilting high-quality bedding covers, quilt covers, garments, seat-covers and household ornaments.CS64 Digital Control Quilting machine machine blanket stitch
Main features:
- This quilting machine Adopting digital control program.
- Saddles and rollers driven by Panasonic servo devices.
- The revolution of the spindle controlled by Panasonic frequency conversion control devices.
- Large number of built-in quilting patterns for your choice.
- Easy and quick pattern design .
- 360 degrees and 180 degrees quilting
- Tack and jump function included .
- stitches between 2mm-6mm adjustable.
- Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick
materials. - Simulation display of quilting.
- Automatic needle raising and location brake system.
Quilting width
64inch
Overall dimensions
2Needle row 3600*1100*1600mm
3Needle row
3800*1200*1650mm
Needle distance
25.4mm
Needle row distance
1-2:3inch 2-3:3inch
1-3:6inch
Net weight
2Row:2300kg
3Row:2600kg
Gross weight
2400kg
2700kg
Running speed
200-500r/m
Output
20-100m/h
Max.thickness
30mm
Max.pattern size
2 Needle Row
(6inch by 6inch )(catercornered distance)
3Needle Row
12inch by 12inch
Voltage
380v 3 phrase
Power
3.5kw
X stroke
8inch (203.2mm )
12inch(304.8mm)
Stitch length
2-6mm adjustable
-
Payment term:
Take 30% of the total price as advance payment by T/T,the balance should be paid off before delivery by T/T.
Packing :
ChiShing company's normal export packing (oiling+ plastic paper packing +fabric and polyester fiber packing
then fixing )Installation:
The seller is responsible for installation and debugging. The whole installation will take7to10 days,and the seller
will send 1 engineer for installation.The buyer is responsible for the roundtrip airplane tickets,accommodation,
medical treatment, safety and relative fees.In addition the buyers should assign workers, electrical wire outside the electric cabinet and tools for installation
to cooperate with the work. The installation cost USD50/Day will be paid by ChiShing.Guarantee:
The seller is responsible for changing the parts which have the quality problem of the machines in one year,
but except from the wearing parts and the quality problem were leaded by wrong operation and other man
made factors,and the quality problem should be confirmed by two sides.
Delivery term:
Normally the goods will be delivered within 30-45days after received the 30% of the contract value. (But the delivery term can be adjusted according to
practical situation)
