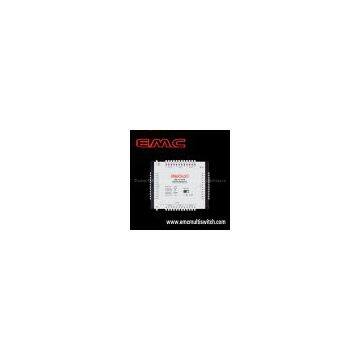

New Multiswitch With LED and Gain Adjustable

Negotiable MOQ: 50 Kilograms (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

EMC

Place of Origin:

China

Model Number:

EMC171708S

Zhuhai EMC Electronic Technology Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name EMC

Place of Origin China

Model Number EMC171708S

Features:

1.16 satellite IF inputs and 1 terrestrial TV input

2.Subscribers outputs select trunk signal by 13/18V,0/22kHz and DiSEqC2.0 commands

3.With High stability stand alone power adapter and the rated current is 2000mA

4.Built-in amplifier to compensate cable loss from input to subscribers.Control cascade output gain in 0 dB

5.All the input signal could be adjust to strong or weak ,Could be eliminate the imbalance phenomenon of the signal strength which bring from LNB

6.TV input port have power supply switch selector, could be provide power to antenna system according to the request of the customers

7.Environmental friendly metal housing with plastic holder

8.Each user has LED display circuit, it can check the working state of users.

Specifications:
Frequency Range:(MHz)	SAT :950~2300 Terr :5~862
Input:	16Sat+1Terr+1Power in
Output:	17 Cascade+8User
loss SAT(user):(dB)	4
loss TER(user):(dB)	2.5
loss SAT(Trunk):(dB)	5
loss TER(Trunk):(dB)	4
Isolation SAT/SAT:(dB)	32
Isolation SAT/TER:(dB)	30
Isolation(switching):(dB)	29
User Max Output Level(SAT):(dBuV)	99
User Max Output Level(Terr):(dBuV)	89
Input/output connector:	75Ω
DC Current Consumption:(mA)	55
Current Pass Per Trunk:(mA)	500
Working Temperature:(℃)	-40~+80
Dimension:(mm)	49831878
