Brief Feature
1. Fit for all kinds of water, like as rich forming or other fliud products
2. PLC Control
3. No bottle no fill.high filling accuracy
4. The filling head and the length of conveyors can be custom made.
Detailed Product Description

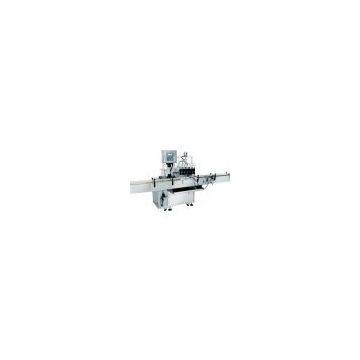

Our automatic vacuum filling machines are very ideal perfume filling machines, easy to maintain, and no bottle no fill.
Our AVAC series machines are studied and developed on the basis of our semi-automatic vacuum filling machines, which are widely accepted and praised by our clients. They are ideal machines to fill water-like products, rich-foaming products or other fluid products.
The design and configuration of these machines, which controlled with PLC, are compact and reasonable. Vacuum filling systems draw product into the container by using constant vacuum suction. When the product reaches the vacuum port, the excess product is drawn back into the collecting bottles. The fill level of the container is determined by the depth of the vacuum port within the neck of the container. Therefore the fill level will be the same regardless of the inconsistencies of the containers. The material of the collecting bottles is pharmaceutical grade, and the product in the bottles can be recycled.
Our automatic vacuum filling machines are easy to maintain, no special tools are required, no bottle no fill, and has high filling accuracy.
The number of the filling nozzles and the length of the conveyors can be custom-made according to your special requirement
Technical Specifications:
Filling Volume: 0-200ml (ideal range)
Filling Speed: 120 containers/min (for 50ml/container, water)
Filling Accuracy: Within ±1mm
Vacuum: 5.7Mpa
Power Supply: AC220V
Air Supply: 50-80psi
