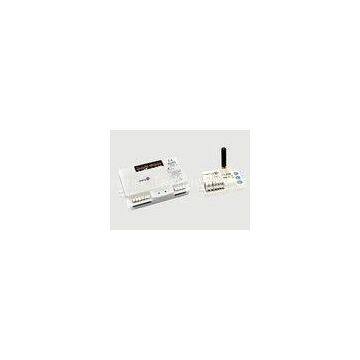

RF Wireless Networking Microwave 120 - 240V AC Motion Sensor MC012V + MW01

Delivery Time:3-5 days
Certification:CE,FCC,MSDS

120-240V AC Operate RF Wireless Networking Microwave Motion Sensor MC012V + MW01 -35℃~70℃ IP20 CE & R&TTE Approval Street Light

Description:

  Used in wireless networking of luminaries, easy installation and free of wire.   With fixed code, very easy to step up any-to-any communication.   Particularly suitable for professional use with higher mounting height, up to 20m.   Special narrow & long detection area (10m x 25m).   By digital receiving and transmitting method, high anti-interference capability and no interference to an RF sensitive device, for example, electronic keys of cars.   With advanced code detection technology, no code missing.   Merrytek takes the lead in using the rotary coding switch in RF transceiver, very easy to create groups.   MC012V is an active motion detector with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials.   MW01 is an innovative and unique wireless transceiver with frequency range 433MHz. Due to use full digital receiving& transmitting and fixed address code for creation of groups, it has high reliability and stability.   The RF module integrates advanced code check technology, significantly improved transmission reliability. Make sure exact signal transmitting and receiving, no code missing.   Merrytek takes the lead in adopting the rotary coding switch to set up groups, very simple to achieve any-to-any communication.

Specifications:

MC012V:

Operating voltage	120-240Vac, 50/60Hz
Rated load	800W (inductive), 1200W(resistive)
HF system	5.8GHz±75MHz, ISM wave band
Power consumption	≤0.5W(standby), <1W(operation)
Transmitting power	<0.5mW
Detection zone Max.(D x H)	Max (25*20m)
Motion detection	0.5~3m/s
Detection angle	150°(wall installation) 360°(ceiling installation)
IP rating	IP20
Operation Temperature	-35℃~70℃
Hold time	10s/30s/90s/3min/20min/30min
Detection sensitivity	10％/25%/50％/75％/100％
Daylight sensor	5lux / 10lux / 30lux / 50lux / Disable
Stand-by dimming level	10％/20％/30％/50％
Stand-by period	5s/5min/10min/30min/1h/Disable
Masking time	10s /1h /2h /4h / 6h/ 8h
Life time	50,000 hours
Guaranty	5 years

MW01:

Operating voltage	12VDC
Transmitting power	≤20mW
Frequency range	433MHz
Standby-power	<0.3W
Operating principle	Radio transmission
Transmission distance	Max:100m in the free field Max:30m inside buildings
Operating temperature	-20℃~70℃
IP rating	IP20

Applications:

MC012V is a sensor detector ,while MW01 is an innovative and unique wireless transceiver ,MC012V+ MW01 is special for Street light application .
