ULTRASONIC THICKNESS METER TM-8812

ULTRASONIC THICKNESS METER TM-8812 photo-1

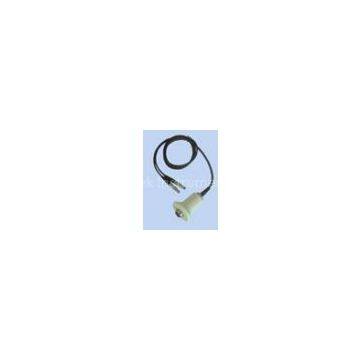

ULTRASONIC THICKNESS METER TM-8812 photo-2

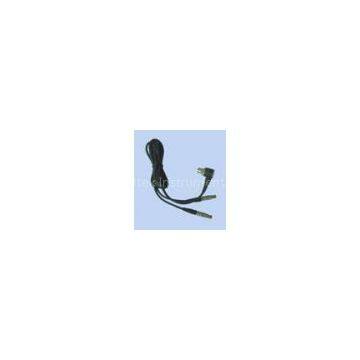

ULTRASONIC THICKNESS METER TM-8812 photo-3
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
landtek
Place of Origin:
China
Model Number:
TM-8812
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Brand Name landtek
Place of Origin China
Model Number TM-8812
Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.
in industries of petroleum,shipbuilding,power station,and machine manufacturing.
Model: TM8812 TM8812C
Measuring range (metric/imperial): 1.0-200mm,0.05-8inch
Operating principle: ULTROSONIC
Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass,
 polyethylene, PVC, gray cast iron, nodular cast iron and other materials
Sound velocity: 500-9000m/s
Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer
Calibration block: included
Resolution: 0.1mm(TM8812C 0.01mm)
Accuracy: ±(0.5%n+0.1)
RS232C interface: with RS232C
Power supply: 4x1.5V AAA (UM-4)battery
Battery indicator: low battery indicator
Operating conditions:0-+45℃(32℉-104℉),≤90%RH
Dimensions: 120x62x30mm
weight: 164g(not including battery)
Optional Accessories:
                                 6MФ6mm thin Material probe:Measuring range(steel): 1.0 50.0mm   Operating
 temperature: -10~+60℃
                                 5MФ12high temperature probe: Measuring range(steel): 1.0~225.0mm(normal
 temperature) Measuring range(steel): 4.0~100.0mm (high temperature) Operating temperature: -10~+300℃
