Home > Products > Food Paper Bag Making Machine > Kraft Paper Bags / Food Paper Bag Making Machine With Strengthen Sheet , High Speed

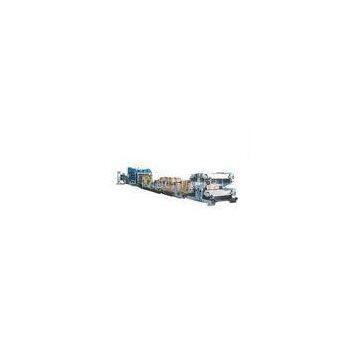

Kraft Paper Bags / Food Paper Bag Making Machine With Strengthen Sheet , High Speed
- T/T L/C D/P D/A
- 7 days
You May Like
-
Auto Cement Paper Bag Manufacturing Machine With Vacuum Mouth Flush Cut Valve
-
Full Auto Valve Paper Bag Making Equipment , Cement Bag Manufacturing Machines
-
Step Cut or Flat Cut Paper Bag Forming Machine / Multi Wall Kraft Paper Sack Making Machine
-
High Speed Kraft Paper Bag Production Line Paper Bag Manufacturing Machine
-
Full Automatic Custom Paper Tube Manufacturing Machine With 4 Color Printing 30 Kw
-
50 KG Cement Kraft Paper Bags Manufacturing Machine / Paper Bag Production Line
Product Details
| Brand Name | Tecon | Place of Origin | China | |
| Model Number | HD4916BD |
Product Description
Certification:CE
HD4916BD Food Kraft Paper Bags Making Machine
with Strengthen Sheet
Features of our full-automatic paper bag production line:
1. Flat & glued bottom with filling valve;
2. Different types for cement, chemicals, foods, tea, etc.
3. 4-color automatic printing
4. 2~4 paper layers, with one extra PE/PP film available
5. 35~50 million bags/year
6. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
7. Full technical service for installation, training and maintenance
8. Full solution for factory construction and materials purchase.
Technical parameters of our production line:
HD4916BD Bottomer Machine
(bottomer with strength sheet pasting unit)
Operating condition
|
Working hour |
22 hours/day |
|
Design temperature |
0~40℃ |
|
Design humidity |
MAX. 95% |
|
Number required |
1 unit |
|
Model name |
HD4916BD |
Performance
|
Mode |
HD4916BD |
|
Speed |
MAX 80 bags/min |
|
Tube Width |
380~620 mm |
|
Bottom Width |
80~160 mm |
|
Valve Sheet Length *Width |
(100-300)﹡(120-340)adjustable |
|
Bag Length |
390~1020 mm |
|
Bottom Center Distance |
290~860 mm |
|
Number of ply |
2~4paper+1 PP/PE |
|
Strength sheet unit |
YES |
|
Strength sheet length *width |
(270~520)﹡(80~160) |
|
Main Drive Motor |
35KW |
|
Machine size |
23.5﹡2.3﹡1.8(M) |
|
Machine weight |
N34(T) |
Composing of the machine
HD4916BD Bottomer Machine
(bottomer with strength sheet pasting unit)
|
Name |
Quantity |
|
High speed feeder machine |
1 |
|
Perforation of the exhaust outlet unit |
1 |
|
Tube opening unit |
1 |
|
Automatic gluing machine |
1 |
|
Scrip sealing machine |
1 |
|
Bag bottom turning unit |
1 |
|
Counting and delivery line |
1 |
|
Automatic delivering out unit |
1 |
|
Piling up platform |
1 |
|
Electric control unit |
1 (German Siemens) |
|
Vacuum-pump |
1 (German Rietschele) |
|
Bearing |
(Janpan NSK) |
Brief Introduction of Our Company
Foshan Tecon Package Machinery CO., LTD is a high_tech equipment manufacturer. We designed the
first production line for paper bag 20 years ago, that\'s is about 1996, and now we are listed in the world
top three in this industry and the only one in China able to design & manufacture the whole production
line of bottom sealed paper bag.
The leading product of our company is the \"high-speed automatic bottom-pasted bag making machine\". It is composed of a tuber machine and a bottomer machine.
The brief history of our company:
Our equipment has served Chinese paper bag industry for 20 years and started running into oversea
mar-ket for 13years. Now there are more than30 Tecon paper bag production lines operating in 13 countries, and this is not complete statistics .
They are producing paper bags used for packing cement, sugar, milk powder, rice, chemical products,
e
