- Place of Origin:China (Mainland)
- Brand Name:CATOS
- Model Number:CATOS-P1206
- Type:Milling
- CNC Machining or Not:CNC Machining
- Micro Machining or Not:Not Micro Machining
- Material Capabilities:Black ESD Durostone sheet,
- Application:wave solder process
Description:

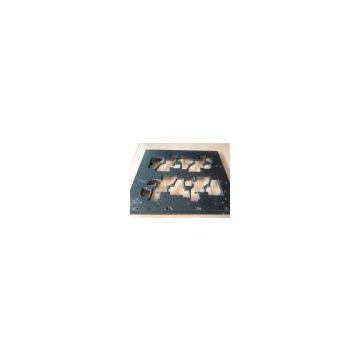

CATOS Engineering specializes in selective wave solder pallets. Designed by engineers with extensive wave solder experience, our pallets enable customers to automate the soldering of through-hole components on complex electronic assemblies.
Wave Soldering is a large-scale soldering process by which electronic components (pin-through-hole components) are soldered to a printed circuit board (PCB) to form an electronic assembly. CATOS's wave pallets or solder pallets are designed to overcome the most challenging situations. Each and every wave pallet or solder pallet is custom designed to meet your needs. Tell us your challenges - our experienced design staff has a proven solution for you.
Selective, Adjustable, and Rotating Fixtures, as well as Open Apertures
1.Eliminate the need for expensive hand masking
2.Reduce costly defects and rejects
3.Accommodate multiple cards on same pallet
4.Improve throughput by quality and volume
5.Prevent warping
6.Allow standardization of conveyor width
7.Connector hold-down eliminates lifting or skewing
8.Wave pallets or solder pallets that work!
And we can design pallet for customers, if possible, please kindly advise me below one information to design pallets as your requested.
a. CAD machined drawing or 3D drawings (such as STP, STEP, IGS, IGES etc.) of wave solder pallets
b. Gerber file of PCB board(Bare)+Sample PCBA Board(Loaded)
Sincerely looking forward to cooperation with you at competitive price and reliable quality.
