Home > Packaging & Printing > Machinery for Packaging Supplies > Bag Making Machine > High Accurate CNC Spring Forming Machine With Wire Feeding Axis

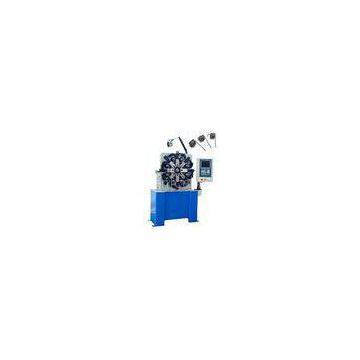

High Accurate CNC Spring Forming Machine With Wire Feeding Axis

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Place of Origin:

China

Model Number:

CNC-20

Contact Supplier Request Quote Chat Now

Dongguan Xinding Mechanical Equipment Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name XD

Place of Origin China

Model Number CNC-20

Delivery Time:20 days
Certification:CE / ISO9001

3-4 axis XD-CNC20 CNC spring forming machine for spring 0.30-2.30mm 100pcs/min production rate

XD-CNC23 universal spring forming machine

Technical Parameter:

Model:	XD-CNC20
Wire diameter:	φ0.3～2.3 mm
Axes:	3 axes
Maximum Outside Diameter:	40mm
Maximum Feeding Length:	unlimited
Maximum Manufacture Speed:	100pcs/min
Feed Speed	200m/min
Memory Number:	1000PCS
Wire Feed Servo Motor:	2.7 KW
Cam Servo Motor:	2.7 KW
Quin Servo Motor	0.75 KW
Power AC:	220V 3P 50/60Hz
Dimensions (LDH):	1400X550X1600MM
Wooden Case Dimensions	1600x600x1700mm
Machine Weight:	900Kg
Gross Weights	950Kg

Details:
1. CNC23 spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. The

mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical

part has eight sets of sliding blocks.The winch and cam rotation have three mechanical action types:

extrudingpunching and molding.
2. The spring machine rotation core system is installed on the axis. The axis can rotate leftwards and

rightwards. The rolling axis is installed on the sliding house. The cam drives it rotate 360°
3. Optional accessories: Cutting tools, rolling axis, safety door.

Our Products:

Compression spring machines: XD-208, XD-220, XD-230, XD-235, XD-345 series and versatile spring machine XD-CNC10, XD-CNC20 and XD-CNC35 universal series.

Why us:

· 13 years of experience in this line

· All machines recieve good comments from customer

· Independent R&D ability

· Always happy to serve and work with our customers

To order:

· Show us what you need

· Provide the suitable machine as per your requirement

· Arrange production after 30% payment

· Ship the goods after full payment

· Following your machine until it reaches its destination

Applicated spring:
