PRODUCT INFORMATION

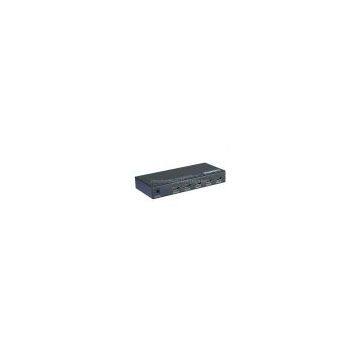

5x1 HDMI Switcher
Model No: HDMI-02 Switcher
Price $52/PCS for 50PCS, $50/PCS for 100PCS, $48/PCS for 300PCS, $45/PCS for 500PCS.
-----------------------------------------------------------------------------------------------------
Introduction
This is an intelligent HDMI 5X1 Amplifier Switcher. It allows five HDMI source devices switched into one HD monitor or projector. Adopted touch button design let you enjoy the high technology and easy switching life. Quite differ with other switchers, this intelligent Switcher has one input port on the front panel. This not only reduced the switcher to an ideal small size but also be more convenient for users to connect the source devices.
Features
This HDMI Amplifier Switcher has many features that enable it to perform in a superior manner. Among those features you will find:
1, Multi-witching methods: intelligent, IR remote or by touch button
2, Supports HDMI1.3b
3, Supports highest video resolution 1080p.
4, Supports 250MHz/2.5Gbps per channel (7.5Gbps all channel) bandwidth.
5, Supports 12bit per channel (36bit all channel) deep color.
6, HDCP pass-through.
7, Supports uncompressed audio such as LPCM.
8, Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD).
SPECIFICATIONS
|
Signal Inputs/Output |
|
|
Input DDC Signal |
5 volts p-p (TTL) |
|
Maximum Single Link Range |
1920X1080p |
|
Output Video |
HDMI 1.3b |
|
Operating Frequency |
|
|
Vertical Frequency Range |
50/60Hz |
|
Video Amplifier Bandwidth |
2.5Gbps/250MHz |
|
Resolutions(HDTV) |
|
|
Interlaced(50&60Hz) |
480i,576i,1080i |
|
Progressive(50&60Hz) |
480p,576p,720p,1080p |
|
Mechanical |
|
|
Size(L-W-H) |
155X70X19mm |
|
Weight(Net) |
260g |
|
Warranty |
|
|
Limited Warranty |
1 Year Parts and Labor |
|
Environmental |
|
|
Operating Temperature |
0C to +70C |
|
Operating Humidity |
10% to 85 % RH (no condensation) |
|
Storage Temperature |
-10C to +80C |
|
Storage Humidity |
5% to 90 % RH (no condensation) |
|
Power Requirement |
|
|
External Power Supply |
5V DC@2A |
|
Power consumption (Max) |
5W |
|
Accessories Adapter |
|
|
IR remote |
|
|
User Manual |
English Version |
Note: Specifications are subject to change without notice.
