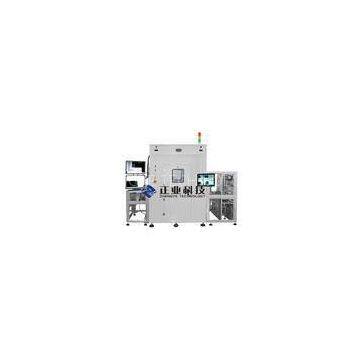

Winding Battery Online X-ray Inspection Equipment / X-ray Inspection Equipment for Battery Testing
Brand : ASIDA
Model : XG5200
Applied products : Winding battery products
Online X-ray Inspection Equipment Usage
Lithium Battery X-ray Inspection Equipment XG5200 is mainly applied for the battery industry.
X ray penetrate through the inner of the battery with X ray transmission principle. The machine
automatic measure the alignment of the positive and the negative of the winding battery,and sorting
the OK/NG products, intelligent match the AB model according to the a standard at the same time .
OK products are transported into the next manufacture process by the belt .
Product characteristic
1. Automatic detection
Automatic detection and sorting OK/NG product.
2.The database modeling
Customers can freely modeling models as many as 60 according to the testing standard.Automatic
switching by reading bar code or QR code .
3. Real-time monitoring
All actions ,signal,and the state of the hardware are real-time monitored and displayed on the software interface .
4. Intelligent matching battery
Software automatic determine the A or B type batteries, match the AB model together into the next
manufacturing process.
5. Images and data online displaying.
In order to convenience of observation and recognition,data and images of many parts of the same
battery test are shown in the same software interface.
6. Safety and environmental protection
The whole equipment with good protective function, all part of the fuselage surface radiation meet
safety standards.
Technical parameters
|
X-ray Tube |
Tube Voltage |
MAX 110KV |
|
Tube Current |
MAX 450uA |
|
|
Focal Spot Size |
5μm |
|
|
Cooling Mode |
Strong wind cooling |
|
|
Image-forming System |
Field of View Range |
4\"/6\" |
|
Resolution |
80lp/cm |
|
|
X-CCD Resolution |
1024*1024pixels |
|
|
Detection Precision |
Repeat accuracy |
60μm |
|
Efficiency |
Detection Efficiency |
≥12ppm |
|
False Rate |
≤2% |
|
|
Missing Rate |
0.0% |
|
|
Qualified Products Rate |
≥99.5% |
|
|
Safety Standard |
International Radiation Safety Standards |
≤1usv/hr |
