1-10V Dimmable LED Driver / Daylight Harvesting Sensor For Meeting Room Light
Negotiable
/ Kilogram
1 Kilogram(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Multi - Function Dimmable LED Driver For Workshop And Warehouse Light / HF Sensor
-
IP20 Daylight Harvesting Sensor , Constant Current Dimmable Led Driver MC003V
-
On off Daylight Harvesting Sensor For LED T8 Tube MC008S / 600mA LED Driver
-
Compact Size Integration 700mA LED Driver 28W and Microwave Motion Sensor
-
Energy - Saving 8W Integrated Sensor Dimmable LED Driver Power Supply
-
Cute Size 8W Integrated Sensor LED Driver Constant Current Output 180mA
Product Details
| Brand Name | Merrytek | Place of Origin | China | |
| Model Number | ML50C-PV + MS01 + MC003V |
Product Description
Certification:CE , R&TTE

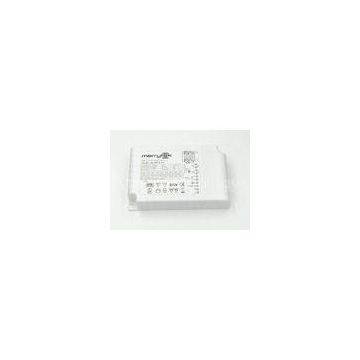

1-10V dimmable led driver ML50C-PV work with MW sensor MC003V and 1-10V Daylight Harvesting Sensor MS01
Description
Widely applied in office and meeting room MS01 work with ML50C-PV and MC003V to provides auto on – off,dimming and daylight harvesting function When no motion detected,luminaire will be dimmed and switched off at last Output current to load selectable from 350mA to 1050mA With ambient light dependent control. Simple setting of the target light level by mean of potentiometer. MS01 supplies a simple and effective solution for daylight harvesting. Connecting to 1-10V interface and using photocell to measure ambient lux level and automatically calculate how much artificial light is need, and then convert the amount of light to 1-10V dimmable control gears (ballasts or LED drivers).1-10V dimmable control gears adjust the lighting output according to the signal from the daylight sensor.Function:
Daylight harvesting auto switch off and dimming
Specifications:
|
Operating voltage |
1 - 10Vdc(MS01) 220-240Vac(ML50C-PV,MC003V) |
|
Max. current sink |
50mA(MS01) 1050mA(ML30C-PV) |
|
Dimming range |
1％~100％ |
|
Output voltage |
60Vdc max |
|
Cable length |
80Cm |
|
Color coding of cable |
Red+, Black- |
|
Detection angle |
90° |
|
IP rating |
IP20 |
|
Operation Temperature |
-0℃~45℃(MS01) -20℃ ~ 50 ℃(ML50C-PV) -35℃ ~ 70 ℃(MC008S) |
Applications:
Office, Workshop, Warehouse, etc
