Mnufacture Direct Supply 2.0mm Aluminium Alloy Welding Wire Rod ER4043

Anxin Jingyuan Trading Co.,Ltd
Mnufacture Direct Supply 2.0mm Aluminium Alloy Welding Wire Rod ER4043 thumbnail-1
Mnufacture Direct Supply 2.0mm Aluminium Alloy Welding Wire Rod ER4043 thumbnail-2
Mnufacture Direct Supply 2.0mm Aluminium Alloy Welding Wire Rod ER4043 thumbnail-3
Mnufacture Direct Supply 2.0mm Aluminium Alloy Welding Wire Rod ER4043 photo-1
Mnufacture Direct Supply 2.0mm Aluminium Alloy Welding Wire Rod ER4043 photo-2

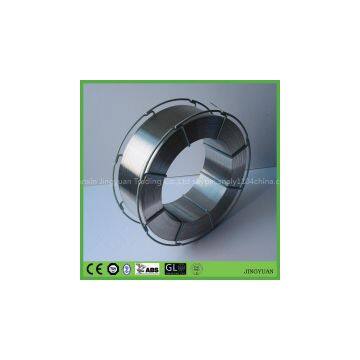

Mnufacture Direct Supply 2.0mm Aluminium Alloy Welding Wire Rod ER4043 photo-3
US$ 3.2 - 4.2 MOQ: 1000 Kilograms
Key Specifications
Get Latest Price
Brand Name:
Jingyuan
Place of Origin:
China
Model Number:
ER4043
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang, Qingdao
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Jingyuan
Place of Origin China
Model Number ER4043
Material Aluminum / Aluminum Alloy
Diameter 0.8mm-1.6mm
Weight 15kg/spool
Application weldly use
Melting Point international standard
Flux Content international standard

Aluminum Welding wire

Aluminum welding wire is specialized in production pure aluminum welding rod, aluminum magnesium welding rod, aluminum silicon welding rod, low silicon welding rod, high silicon welding rod.The aluminum welding wires are widely used in bicycles, aluminium scoter, engine carriage, pressure vessel, armary processing, ship-building, space shuttle etc.



         AWS A     5-10

Data

ER1060

ER1100

ER2319

ER4043

ER4047

ER5356

ER5183

ER5556

Typical   composition in%

Si

<0.25

Si+Fe<0.95

<0.20

4.50-5.50

11.00-13.00

<0.25

<0.40

<0.25

Fe

<0.35

<0.30

<0.80

<0.60

<0.40

<0.40

<0.40

Cu

<0.05

0.05-0.20

5.80-6.80

<0.30

<0.30

<0.10

<0.10

<0.10

Mn

<0.03

<0.05

0.20-0.40

<0.05

<0.15

0.05-0.20

0.50-1.00

0.60-1.00

Mg

<0.03

-

<0.02

<0.05

<0.10

4.50-5.50

4.30-5.20

4.70-5.50

Cr

-

-

0.05-0.20

0.05-0.25

0.05-0.20

Zn

<0.05

<0.10

<0.10

<0.10

<0.20

<0.10

<0.25

<0.20

Be

-

<0.0008

<0.0003

<0.0003

<0.0003

<0.0003

<0.0003

<0.0003

Ti

<0.03

-

0.10-0.20

<0.20

<0.15

0.06-0.20

<0.15

0.05-0.20

Physical   properties(Approx. Values)

0.2%   yield strength Rp0.2 Mpa

20

25

180

40

60

110

125

125

Tensile   strength Rm Mpa

65

80

240

120

130

240

275

275

Elongation   A5(L0=5d0) %

18

25

Ca.3

8

5

17

17

17

Test   temperature ℃

20

20

20

20

20

20

20

20



AWS A5.10

Joint Strength

 Parent metal

Characteristics

Standard

(Mpa)

ER1070

Above 55

Pure aluminum   series105010701080

Good anti-corrosive   and plasticity

ER1100

80-110

Pure aluminum    series1100

Good anti-corrosive   and plasticity

ER1200

80-110

Pure aluminum    series1200

Good anti-corrosive   and plasticity

ER2319

400-450

Pure aluminum    series2219

High intensity after   heat treatment

ER4043

170-250

Al-Mg-Si casting   aluminum

The anti-thermal   crack performance of the welded joint is good, but the plasticity, toughness   are low, becomes grey black after anodic process

ER4047

170-250

Casting Al. ,Al-Cu   casting ,Ag-Mg-Si casting

The anti-thermal   crack performance of the welded joint is good, but the plasticity, toughness   are low, becomes grey black after anodic process

ER4145

200-300

Al-Cucasting20142017

The anti-thermal   crack performance of the welded joint is good, but the plasticity, toughness   are low, becomes grey black after anodic process

ER5554

180-240

low Mg   content5052,5454casting

 Use chemical   equipment with a temperature above 65

ER5654

210-270

medium Mg   content5154casting

medium intensity,good   anti-corrosive

ER5356

270-310

Al-Mg casting,   Al-Mg-Si casting, Al-Zn-Mg casting

Typical welding wire   used most widely, good mechanics performance and anti-corrosiveness

ER5556

280-320

Al-Zn-Mg casting,   Al-Mg casting

The connector   intensity is high, and the moulding performance and tenacity is inferior to   5183

ER5183

280-310

Al-Mgcasting5083

Typical welding wire   used most widely, good mechanical performance and anti-corrosiveness



Specifications: MIG-wires, 0.8mm,0.9mm,1.0mm,1.2mm,1.6mm2.0mm,2.4mm

TIG-rods, 1.6mm,2.0mm,2.4mm,3.2mm,4.0mm,5.0mm, 6.0mm

MIG Packing:0.5kg, 1kg,2kg, 6kg, 7kg/plastic spool
TIG Packing: 5kg, 10kg per paper box or plastic box, Length 1.000mm



aluminum welding wire professional manufactory

high toughness

good forge ability

well anti-corrosiveness

good choice for color-match





Notice of usage and storage
1 You can do welding directly in effect without any processing before welding after opening the box of products,The products will be in effect more than two years on condition they are of good packing in seal.
2 The products should be put to the place where is of aeration and dryness and away from the medium of acidalkalioil and so on.
3 The products should be avoided of crack and damp during delivery so as to avoid destroying the welding spools and impacting the quality of welding wires.
4 We suggest you to put some dust-proof on the surface of wires after the packages are moved from the products.
5 We suggest you to do some processing to the surface of the wires before welding when you use the wires out of storage life.
6 The arc welding may hurt your eyes during welding. please protect yourself.
