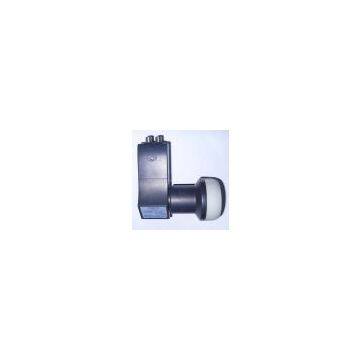

Help CenterSingle LNBF
Related Products
*universal single LNBF
*output Frequency Range:950-2150MHZ
*input:10.7-12.75GHZ
*conversion:60DB
Specification :
- F/D Ratio:0.6
- Input Interface: waveguide WR-75
- Noise Figue:0.2dB(Typ.)
- Image Rejection:45dB(min.)
- L.O.Frequency
low band:9.75GHZ
high band:10.6GHZ
- L.O.Frequency Stability:±2MHz@-40 to +60℃
- Output Connector:75ohms F type female
- Polarization: Linear
- Polarity Switching Voltage
V:12-14.5v
H:16-18v
- Operation Temperaure(℃):-40℃ to +60℃
- Input Frequency Range:10.7─11.7GHZ;11.7─12.75GHZ
- Conversion Gain:60dB
- Gain Flatness:±0.5dB/36MHz
- L.O.Phase Noise:
-70dBc/Hz @10kHz
-90dBc/Hz @100kHz
-110dBc/Hz @1MHz
- Band Switching Pulse:0/22KHZ
- Output Frequency Range
low band:950─1950MHZ
high band:1100─2150MHZ
- Output Power(at 1dB gain compression):0dBm(Min)
- D.C.Currrent Consumption:100mA(Max)
- Cross polarization discrimination:20dB(min)
