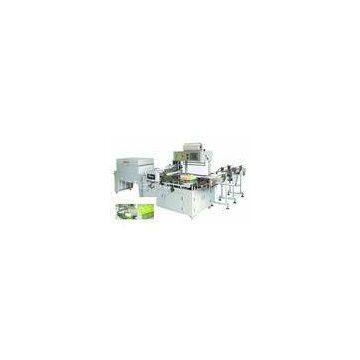

Tissue Making Machines Vertical Packaging Machine Convenient Adjustment

FOB Price

US$ 34000 - 38000 / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ONEPAPER		Place of Origin	China
Model Number	OPS - 600 B

Product Description

Delivery Time:1 - 3 MONTHS
Certification:CE , ISO9001

High Output Automatic box paper collective thermal shrink packing machine , With Stable Running

Applications:

It is suitable for individual or collective thermal shrink packing of box facial tissue, box sanitary napkin, roll toilet paper, etc.

Our machine has passed I S O 9 0 0 1 quality certification and CE certification. It has been used by many domestic and international enterprises in such industries as APP,Fine, Nepia, Vinda, Deli, TRUECOLOR, BEIFA, brother, GLAD, etc. Also we can provide personalization design to meet the requirements of different customers. Meanwhile, we can provide resources and technical support to help the customer to build their ideal factory.

Features:

Welting fully-closed type packing is adopted and the finished products are featured by beautiful appearance and compact structure. The production is completed through such procedures as automatic feeding, piling, bag making, sealing & cutting, flattening, shrinking, finished products output, etc., so that labor cost is greatly reduced. The constant temperature type super alloy sealing cutter is used for sealing and cutting. It is featured by good sticking resistance, fine sealing thread, no coking, no smoke and zero pollution. Special protection device is provided at the sealing to effectively prevent wrong cutting of packaging. Packaging size is randomly adjustable without the need of replacing molds. The shrinking chamber adopts the double-circulation hot air system with randomly adjustable temperature. Internationally famous brand electrical equipment, man-machine interface, PLC system are adopted with stable running and high automation degree. Linked production with the boxing and sealing machine, automatic ink-jet printer and other production lines can be realized.

Main Technical Parameters:

Model	OPS-350B	OPS-600B
Sealing and cutting type	Welting fully-closed type
Power supply	380V /50-60Hz/ 3phase
Packing speed	10-30 bags/minute (depending on the length of packaging)
Packing height	≤125mm
Packing width	≤350mm	≤600mm
Packing dimensions	≤400mm Width + height ≤400mm	≤620mm Width + height ≤620mm
Packing material	POF center folded film
Maximum film width	530mm
Maximum film roll OD	Φ 280mm
Total power	11.5KW
Platform height	780 - 850mm
Air pressure	≥ 0.5 MPa(5bar )
Main material	High quality carbon steel
Furnace dimensions	1200mm(L) ×mouth 450(W) ×220(H)mm	1400mm(L) × mouth 680(W) ×320(H)mm
Conveying speed	40 meters / minute ( adjustable )
Conveyor belt	Chain type conveyor belt, roller is enclosed into silicone tube
Outline dimensions	Cutting and sealing part	L1600×W950×H1600mm	L1800×W1150×H1600mm
Shrinking furnace	L2200×W1150×H1700mm	L2200×W1150×H1700mm
Machine weight	600Kg	900Kg

Customer List:
