FLY7503M-BNC to VGA Converter

FLY7503M-BNC to VGA Converter thumbnail-1
FLY7503M-BNC to VGA Converter thumbnail-2
FLY7503M-BNC to VGA Converter thumbnail-3
FLY7503M-BNC to VGA Converter photo-1

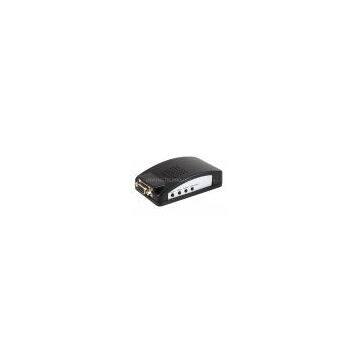

FLY7503M-BNC to VGA Converter photo-2
FLY7503M-BNC to VGA Converter photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
lenkeng
Place of Origin:
China
Model Number:
FLY7503M
Contact Supplier Request Quote Chat Now
Lenkeng Technology Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name lenkeng
Place of Origin China
Model Number FLY7503M

FLY7503M-BNC Composite Video and S-Video to VGA converter allows your DVR or CDD camera to be displayed on standard computer monitor, converting a computer monitor or LCD into a CCTV monitor.
The connection on the back of DVR and CDD camera is BNC female, which is to be connected to the BNC input of FLY7503M-BNC. The output video quality is better than the direct VGA output from DVR.



Features
-Inputs: 1 X  Composite Video, 1 X S-Video, 1 X VGA;
-Output: 1 X VGA;
-Composite Video Interface: BNC (The model with RCA input is: FLY7503M and FLY7503W)
-Switch between the 3 inputs and output one of them to VGA;
-The VGA input is pass through to the VGA output without any processing;
-Both PAL / NTSC are supported;
-Optional Resolution: 800 X 600@60HZ, 800 X 600@75HZ, 1024 X 768@60HZ, 1280 X 1024@60HZ, (Note: The model supports higher resolution is FLY7503W & FLY7503W-BNC)
-Brightness, hue, contrast, saturation, color, are adjustable and auto-save when power off;
-Optional function: Remote Control.
Connection Image

Interface Specification



 Item

 Spec.
 (1)VGA Out  To connect VGA display (Computer monitor or LCD)
 (2)Video In  To connect Composite Video devices (eg:DVR, CDD Camera, etc)
 (3)S-Video In  To connect S-video devices
 (4)VGA In  To connect PC host
 (5)DC 5V  To connect power supply
 (6)LED Indication  Shows working staus.



  Item

 Spec.
 (1)Input:  Switch between input sources Composite Video>>S-VIDEO>>VGA
 (2)Menu  Click it to adjust lightness, contrast, saturation and hue

 (3)Freeze/+
(4)Resolution/-

-Under BRI Menu, "Freeze/+": increase value of lightness; "Resolution/-" : decrease value of lightness.
-Under "CON" Menu, " Freeze/+" : increase value of contrast; "Resolution/-" : decrease value of contrast
-Under "COL" Menu,  " Freeze/+" : increase value of saturation, "Resolution/-" : decrease value of saturation
-Under "HUE" Menu, " Freeze/+" : increase value of hue; "Resolution/-" : decrease value of hue
-When menu is closed, Press : " Freeze/+" to freeze output display video;
-When menu is closed: Press: " Resolution/-" to select output resolution;
                                                 Press "Input" and "Resolution/-" at the same time: Default Setting.
Accessories & Package
Item
Qty
Pic
S-Video cable
1 pcs
Power supply
1 pcs
User manual
1 pcs
Package Box
1 pcs

Package Info:



   Weight (KG)  Dimension (LxWxH cm)
 Product  0.09  10X6.1X2.6
 Gift Box (1pcs with accessories and gift box)  0.4  20.5X15.5X7
 Carton Box (20pcs)   11  43X33X37
