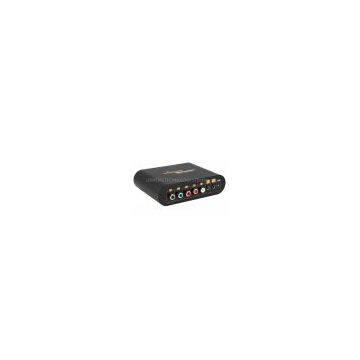

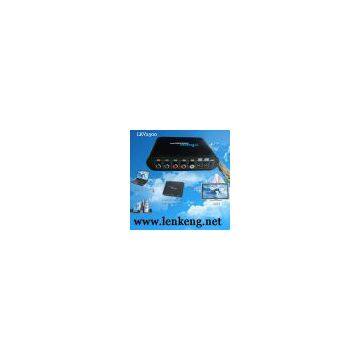

LKV2300 VGA to Component Video Converter

LKV2300 VGA to Component Video Converter thumbnail-1
LKV2300 VGA to Component Video Converter thumbnail-2
LKV2300 VGA to Component Video Converter thumbnail-3
LKV2300 VGA to Component Video Converter photo-1
LKV2300 VGA to Component Video Converter photo-2
LKV2300 VGA to Component Video Converter photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
LKV2300
Contact Supplier Request Quote Chat Now
Lenkeng Technology Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number LKV2300

This product converts VGA to Component Video, allowing connection of PC/laptop VGA to TV that supports 480p, 720P, 1080i via Component Video. It is with Component Video output as well as VGA, and offers simultaneous viewing on TV and PC monitor. The VGA output is pass-through without processing, while Component Video output is with multiple display modes for option.



Features
Input
1×VGA, 1×Audio
Output
1×VGA, 1×Component Video, 2×Audio
VGA Resolution
640x480@60/75Hz, 800x600@60/75Hz, 1024x768@60/75Hz,  1280x800@60Hz, 1280x1024@60Hz
Component Video Resolution
480p, 720p, 1080i
Optional display mode of Component Video Output
Normal, Vivid, Soft, Sharp
Recommended VGA and corresponding Component Video Resolution
640x480@60Hz/75Hz → 480p
800x600@60/75Hz    → 720P
1024x768@60/75Hz → 720P; 1080i       (between which 720P is better)
1280x800@60Hz     →   720P; 1080i    (between which 720P is better)
Portable Size
12.8(L) × 9.4(W) × 3.4(H) CM
Power Supply
DC 5V/1A
Max. Power Consumption
3W
Working Temperature
-25℃~55

NOTE: In order to get the best display effect, the VGA resolution recommended is 1024x768@60/75Hz and Component Video resolution is 720P. 1280x1024@60Hz is not recommended if the PC supports any one of the other 4 sets resolution.

Connection Image



Interface Specification







⑴Y-Pb-Pr: Component Video output   ⑵L/R: Audio L/R output;
⑶Audio Input: 3.5mm Audio input      ⑷Audio Output: 3.5mm Audio output;
⑸LED: Power indication                   ⑹ON/OFF, SD/HD, MODE: Setting keys
⑺DC/5V: Power supply                    ⑻VGA-IN: VGA input
⑼VGA-OUT: VGA output
Accessories & Package
Item
Qty
Pic
YPbPr cable
1 pcs
VGA cable
1 pcs
Power Supplier
1 pcs
User manual
1 pcs
Package Box
1 pcs

Package Info:



   Weight (KG)  Dimension (LxWxH cm)
 Product  0.27  12.7X10.6X3.5
 Gift Box (1pcs with accessories and gift box)  0.62  25X17.5X7
 Carton Box (20pcs)   15  51X39X39
