LKV7600 Component Video to VGA Converter

LKV7600 Component Video to VGA Converter thumbnail-1
LKV7600 Component Video to VGA Converter thumbnail-2
LKV7600 Component Video to VGA Converter thumbnail-3
LKV7600 Component Video to VGA Converter photo-1

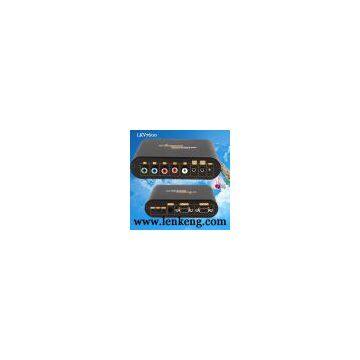

LKV7600 Component Video to VGA Converter photo-2

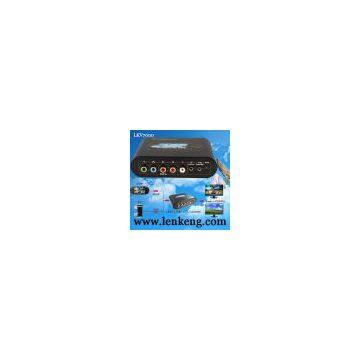

LKV7600 Component Video to VGA Converter photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
lenkeng
Place of Origin:
China
Model Number:
lkv7600
Contact Supplier Request Quote Chat Now
Lenkeng Technology Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name lenkeng
Place of Origin China
Model Number lkv7600
Features

-Input: 1 X VGA, 1 X Component Video (Y-Pb-Pr), 1 X Stereo Audio;
-Output: 1 X VGA, 1 X Audio;
-Output Resolution is optional. Select on the OSD menu;
-VGA Resolution: 640x480; 800x600; 1024x768; 1440x900; 1400x1050, 1600x1200; 1680x1050; 1920x1200; 1280x768;
-Component Video Resolution supported: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p(50Hz/60Hz);
-Brightness, contrast, saturation, hue are adjustable;
-Both PC and MAC Computer are supported;
-Portable Size:12.8x9.4Cmx3.4(W) cm;
-Power adaptor: DC5V/1A.

Note: LENKENG is capable of providing OEM & ODM service as per customer design.

Connection Image

Interface Specification



 Item

 Spec.
 (1)Y-Pb-Pr  To connect Y-Pb-Pr interface of the input device
 (2) L/R  Stereo Audio Input
 (3)Audio Input  Connect Audio from PC
 (4)Audio Output:  Connect sound box
 (5)LED  Red LED: PC Host input; Green LED: Component Video input
 (6)Menu/Up/Down  Function Key
 (7)DC/5V/1A  Connect power supply
 (8)VGA-IN  Connect PC host
 (9)VGA-OUT  Connect PC Monitor or LCD



 Item

 Spec.
 (1)MENU - Click it to enter into OSD menu;
- Press it and hold on for 3 seconds: Switch between VGA and Component video input;
- Press it and hold on for 10 seconds: Default setting (Output resolution: 1024x768)
 (2)UP -Under OSD Menu, press it to select different items of function;
-Under the menu of adjusting brightness, contrast, saturation, hue adjustment, press it to increase the value;
-Under the menu of resolution setting, click it to select output resolution;
-OSD menu is closed, click it to select 4:3, 16:9 or full screen display modes
 (3)DOWN - Under OSD menu, click it to select different item of functions;
- Under the menu brightness, contrast, saturation, hue adjustment, click it to decrease the value;
- Under the menu of resolution setting, click it to select output resolution
Accessories & Package
Item
Qty
Pic
YPbPr cable
1 pcs
Audio cable
1 pcs
Power Supplier
1 pcs
User manual
1 pcs
Package Box
1 pcs

Package Info:



   Weight (KG)  Dimension (LxWxH cm)
 Product  0.27  12.7X10.6X3.5
 Gift Box (1pcs with accessories and gift box)  0.62  25X17.5X7
 Carton Box (20pcs)   15  51X39X39
