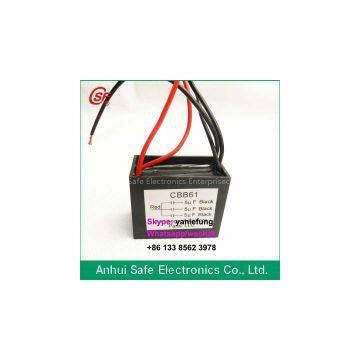

Wire type 5+5+5uF CBB61 Capacitor
This capacitor uses polyprpylene film andreticulation safety film (thickened by zinc and aluminum) as a medium,encapsulated by burnt-prevent epoxy resin and square ABS plastic.
It is small, reliable and safe, also hasstable electric and long working life.Fan capacitor CBB61 widely used as thestart-up and running capacitor that is special for electric appliances such aselectric fan,ventilators and exhaust fanners.
Standard：IEC 60252-1:2001
Technical features：
Climate type：40/70/21 or40/85/21
Capacitance tolerance：± 5%
I.R：≥3000S（MΩ·µF）
Dielectric dissipation factor：tgδ≤0.002 (50Hz～100Hz)
Application requirements：
Altitude：≤2000m
Residual voltage in application: less than 10% of rated voltage.
Allowed maximum voltage: less than 1.1 times of rated voltage
Permissible maximum current: less than 1.3 times of rated current.
Dimensions & specifications (mm)
Ratedvoltage:200VAC,250VAC,370VAC,400VAC,440VAC,450VAC,500VAC
Nominalcapacitance:1uf,1.2uf,1.5uf,2uf,2.5uf,3uf,3.5uf,4uf,4.5uf,
5uf,6uf,6.5uf,7uf,8uf,10uf,12uf,14uf......
Technical Specifications
Standard |
GB3667-1997 |
Climate type |
40/70/21 |
Capacitance tolerance |
5% |
I.R.: |
≥3000S·µF I.R |
Dielectric dissipation factor |
tgδ≤0.002 (50Hz～100Hz) |
Altitude |
≤2000m |
Residual voltage in application |
less than 10% of rated voltage. |
Allowed maximum voltage |
less than 1.1 times of rated voltage |
Permissible maximum current |
less than 1.3 times of rated current. |
Please contact yanie@anhuisafe.com
