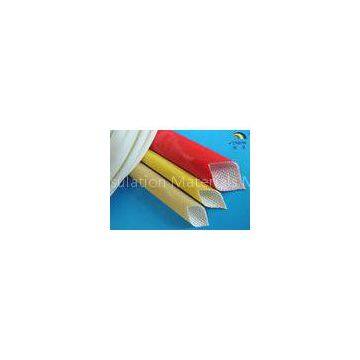

Colored Heat Treated 2.5KV Fiberglass Braided Wire Sleeve / Silicone Resin Coated Sleeving
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Anti-corrosion High Voltage Resistant PTFE Tube PTFE Products for Motor Use
-
White or Black PTFE Hose / Tubing / Sleeving for Electric Products -80C 260C
-
4.0KV Red White Yellow Silicone Fiberglass Sleeving Flexible and Flame Retardant
-
High Temperature PTFE Tube PTFE Products , High voltage PTFE Pipes Low Friction
-
100% Virgin Extruded Clear PTFE Tube / Pipe Pure White With Smooth Surface
-
Self-extinguishable Silicone Fiberglass Sleeving Multi Color Silicon Tubing Insulation Sleeve
Product Details
| Brand Name | Sunbow | Place of Origin | China | |
| Model Number | SB-SGS-25 |
Product Description
Certification:UL , RoHS , Reach , CSA
2.5KV High Quality Silicone Fiberglasss Sleeving with White Color
1. Model Number: SB-SGS-25
2. Working temperature: 200ºC
3. Structure
The material content of the SB-SGS-25 is non-alkali fiberglass braided then coated with silicone resin and treated in high temperature.
4. Specification
|
Item |
Performance |
Note |
|
|
Dielectric Breakdown Voltage  KV AC |
Minimum Average |
≥2.5 |
Before Aging |
|
Minimum Single Point |
≥2.0 |
||
|
Minimum Average |
≥1.5 |
6 Hrs* 245±5ºC 245±5ºC 6Hrs Aging |
|
|
Minimum Single Point |
≥1.0 |
||
|
Thermal Endurance |
No Indication of Crack |
OK |
6 Hrs* 245±5ºC 245±5ºC 6Hrs Aging |
|
Fire Resistance |
VW-1 |
OK |
UL 1441 |
5. Dimension
|
Inside Diameter |
Wall Thickness (mm) |
Standard Package        (m/roll) |
|
|
Nominal (mm) |
Tolerance (mm) |
||
|
φ0.5 |
+0.2, -0.1 |
≥0.30 |
200 |
|
φ1.0 |
+0.2, -0.1 |
≥0.30 |
200 |
|
φ1.5 |
+0.2, -0.1 |
≥0.30 |
200 |
|
φ2.0 |
+0.2, -0.1 |
≥0.30 |
200 |
|
φ2.5 |
+0.3, -0.1 |
≥0.35 |
200 |
|
φ3.0 |
+0.3, -0.1 |
≥0.35 |
200 |
|
φ4.0 |
+0.3, -0.1 |
≥0.35 |
200 |
|
φ4.5 |
+0.3, -0.1 |
≥0.40 |
100 |
|
φ5.0 |
+0.3, -0.1 |
≥0.40 |
100 |
|
φ6.0 |
+0.3, -0.1 |
≥0.40 |
100 |
|
φ7.0 |
+0.3, -0.1 |
≥0.45 |
100 |
|
φ8.0 |
+0.3, -0.1 |
≥0.45 |
100 |
|
φ9.0 |
+0.3, -0.1 |
≥0.55 |
100 |
|
φ10.0 |
+0.3, -0.1 |
≥0.55 |
100 |
|
φ12.0 |
+1.0, -1.0 |
≥0.55 |
50 |
|
φ14.0 |
+1.0, -1.0 |
≥0.55 |
50 |
|
φ16.0 |
+1.0, -1.0 |
≥0.55 |
50 |
|
φ18.0 |
+1.0, -1.0 |
≥0.55 |
50 |
|
φ20.0 |
+1.0, -1.0 |
≥0.65 |
25 |
|
φ25.0 |
+1.0, -1.0 |
≥0.65 |
25 |
|
φ30.0 |
+1.0, -1.0 |
≥0.65 |
25 |
6. Usage
SB-SGS-25Â sleeving with its good dielectric strength, flexibility and flame retarding properties make it high pe
