Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > Insulation Protective Silicone Fiberglass Sleeving / Rubber Coated Fiber-glass Sleeve

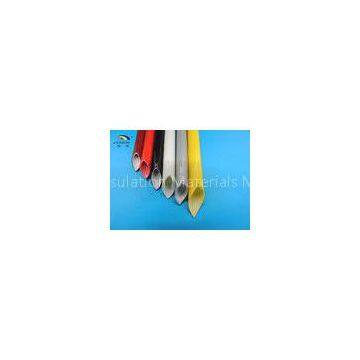

Insulation Protective Silicone Fiberglass Sleeving / Rubber Coated Fiber-glass Sleeve

Name: Insulation Protective Silicone Fiberglass Sleeving / Rubber Coated Fiber-glass Sleeve
Brand: Sunbow
SKU: 150233202
Availability: InStock

Insulation Protective Silicone Fiberglass Sleeving / Rubber Coated Fiber-glass Sleeve thumbnail-1

Insulation Protective Silicone Fiberglass Sleeving / Rubber Coated Fiber-glass Sleeve photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Sunbow

Place of Origin:

China

Model Number:

SB-SGS-25

Contact Supplier Request Quote Chat Now

Shenzhen Sunbow Insulation Materials MFG. CO., LTD

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Sunbow

Place of Origin China

Model Number SB-SGS-25

Delivery Time:3~7 Working Days
Certification:UL , RoHS , Reach , CSA

Insulation Protective Silicone Rubber Coated Fiberglass Sleeve

1. Structure

Insulation Protective Silicone Rubber Coated Fiberglass Sleeve is non-alkali fiberglass braided then coated with silicone resin and treated in high temperature.

2. Model Number: SB-SGS-25

3. Working temperature: 200ºC

4. Specification

Item	Performance	Note
Dielectric Breakdown Voltage KV AC	Minimum Average	≥2.5	Before Aging
Minimum Single Point	≥2.0
Minimum Average	≥1.5	6 Hrs* 245±5ºC 245±5ºC 6Hrs Aging
Minimum Single Point	≥1.0
Thermal Endurance	No Indication of Crack	OK	6 Hrs* 245±5ºC 245±5ºC 6Hrs Aging
Fire Resistance	VW-1	OK	UL 1441

5. Usage

SB-SGS-25 sleeving with its good dielectric strength, flexibility and flame retarding properties make it high performance qualities. It can be widely used in insulated or partially insulated conductors, bus bars, component leads, or assemblies of electrical components etc.

6. Dimension

Inside Diameter	Wall Thickness (mm)	Standard Package (m/roll)
Nominal (mm)	Tolerance (mm)
φ0.5	+0.2, -0.1	≥0.30	200
φ1.0	+0.2, -0.1	≥0.30	200
φ1.5	+0.2, -0.1	≥0.30	200
φ2.0	+0.2, -0.1	≥0.30	200
φ2.5	+0.3, -0.1	≥0.35	200
φ3.0	+0.3, -0.1	≥0.35	200
φ4.0	+0.3, -0.1	≥0.35	200
φ4.5	+0.3, -0.1	≥0.40	100
φ5.0	+0.3, -0.1	≥0.40	100
φ6.0	+0.3, -0.1	≥0.40	100
φ7.0	+0.3, -0.1	≥0.45	100
φ8.0	+0.3, -0.1	≥0.45	100
φ9.0	+0.3, -0.1	≥0.55	100
φ10.0	+0.3, -0.1	≥0.55	100
φ12.0	+1.0, -1.0	≥0.55	50
φ14.0	+1.0, -1.0	≥0.55	50
φ16.0	+1.0, -1.0	≥0.55	50
φ18.0	+1.0, -1.0	≥0.55	50
φ20.0	+1.0, -1.0	≥0.65	25
φ25.0	+1.0, -1.0	≥0.65
