Certification:CE, RoHS, FCC, UL
70w LED Lamps for Warehouse with High Ceiling Aluminum Body Super Bright High CRI
Features:
A. This 70w LED lamps can be used to replace 150w to 200w high voltage sodium lamps, the lumens can be much higher, and the life can be much longer;
B. Super bright, over 7700lm, the CRI can be over 70Ra, or over 80Ra;
We are mainly using BridgeLux 45MIL led chip, and do the encapsulation in our own factory, we are using pure copper fixtures, 1.2 golden wire, Intematix phosphor, and Shin-Etsu silica gel for encapsulation; the performance will be very stable.
C. Top quality LED power supply;
We are mainly using Mean Well power supplier, this is one of the best driver in the markets now.
D. Different beam angles are available:
45degree aluminum reflectors, 90degree aluminum reflectors, 120degree aluminum reflectors, and 45degree pc/ acrylic reflectors.
Specifications:
| Item: |
SW-HB03-W70 |
|
|
LED Power consumption |
70W |
|
|
Total power consumption |
75W |
|
|
Luminous flux |
7700lm |
|
|
Input voltage |
AC85~265V, AC90-305V |
|
|
Power factor |
0.97 |
|
|
LED luminous efficiency |
110-130lm/W |
|
|
Color temperature |
WW(2700~3200K) NW(4000~4500K) CW (6000~7000K) |
|
|
Color rendering index |
≥70Ra, >80Ra |
|
|
Beam angle |
120°,45°,90° |
|
|
LED chip junction temp. |
≤60°C |
|
|
LED drive efficiency |
≥91% |
|
|
Constant current accuracy |
5% |
|
|
IP rate / Insulation class |
IP54 |
|
|
Operating temperature |
-40°C ~ +55°C |
|
|
Storage temperature |
-25°C ~ +65°C |
|
|
Package |
Net weight |
6.0kg |
|
Gross weight |
7.0kg |
|
|
Packimh |
4pcs in one carton |

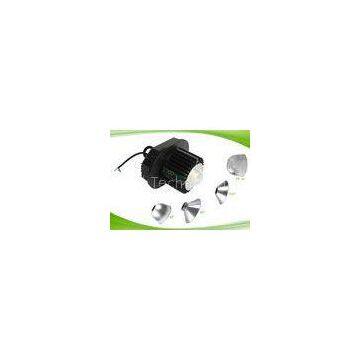

Product Pictures:
You can select any angles on below picture:
Applications:
1. Warehouse, Workshop, and all those areas with high ceiling need high brightness;
2. Gas station, toll station;
3. Super markets, display room, exhibition hall
