Good Contrast P8 Advertising LED Screen / Billboards SMD3535 External LED Display

Name: Good Contrast P8 Advertising LED Screen / Billboards SMD3535 External LED Display
Brand: BAKO
SKU: 150057154
Availability: InStock

Good Contrast P8 Advertising LED Screen / Billboards SMD3535 External LED Display thumbnail-1

Good Contrast P8 Advertising LED Screen / Billboards SMD3535 External LED Display photo-1

Negotiable MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

BAKO

Place of Origin:

China

Model Number:

BK-P8

Contact Supplier Request Quote Chat Now

Shenzhen BAKO Optoelectronics Co.,Ltd R

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name BAKO

Place of Origin China

Model Number BK-P8

Delivery Time:20 days after advanced payment
Certification:CE/ROHS/FCC/SGS

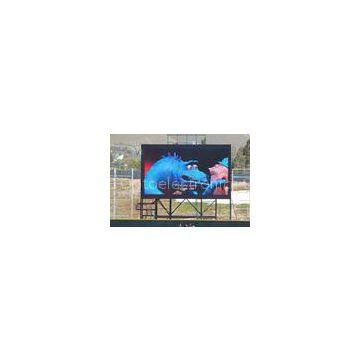

P8 Outdoor Advertising LED Display SMD3535 lamp good contrast

Specifications:

Unit module	Pixel pitch	8 mm
Pixel density(dots/sqm)	15625/sqm
LED encapsulation	SMD3535
Driving method	1/4
Module size(mm)	256*256mm
Resolution of module( dots)	32*32
Major technical parameters	Cabinet size	1024*1024mm
Brightness	7500cd/ ㎡
Refresh rate	>2000HZ
Color temperature	6500K
View angle(H/V)	160°/140°
Grey scale	16bit
Brightness adjustment	256 grade/ Manually/ Automatically
Working/ storage temperature	-20℃~50℃/ -30℃~60℃
Working/ storage humidity	10％~90％ RH
Working voltage	AC220/110V 50Hz
Protect degree	IP65/IP54
MTBF	>5000h
Life span	100000h
Input Signal	AV, S-VIDEO, VGA, DVI, HDMI, SDI, DP
Operation system	Windows 7/XP
Control distance	cat-5 data cable:<100m, optical fiber<15km

Quick details:

pitch: P8 SMD3535

module size: 256*256mm

scanning: 1/4

cabinet size: 1024*1024mm

Description:

1. Hot item for outdoor application: SMD LED display application will be trend for outdoor application. So it is becoming hotter and hotter.

2. Good waterproof protection: Front is IP65 and back is IP54. There is totally no problem for outdoor application.

3. Good color uniformity: Since 3 LED chips are encapsulated in one lamp, SMD color uniformity is much better than DIP so the showing effect is perfect.

4. Anti-low temperature: for very cold areas such as Russian market, we should pay special attention to the cold temperature. So we will use anti-low temperature power suppliers and special heat system to warm the display.

5. Good heat output system for high temperature: For hot ares, heat output system is specially important. Or else, the whole display will become hot and there will be dangerous. So we help clients to reduce current and also make add fans for screen.

6. Energy saving: power consumption is a key factor for LED billboard. BAKO’s LED display is designed with low power consumption to help clients to save energy.

7. High brightness: For outdoor application, brightness is important, especially if the LED display faces the sun directly. BAKO’s outdoor display brightness can be above 7500 nits, completely ensure the requirement for outdoor application.

8. Adjustable brightness: In the daytime, brightness should be high. But in the evening, it should be reduced for traffic safety. BAKO’s LED display can make the brightness adjusted automatically. Also, this method can help to save much energy.

9. Both front and rear service: For some special application, front service is a must. BAKO makes new design for SMD outdoor LED display.

Competitive Advantage:

1) full experience in LED SMD outdoor display design and production.

2) we can offer on-site guidance for installation

3) we have full series for optional
