Specifications
Braided by ceramic fiber yarns,it is used as heat insulating materials and an excellent substitute for asbestos packing.Packaging & Delivery

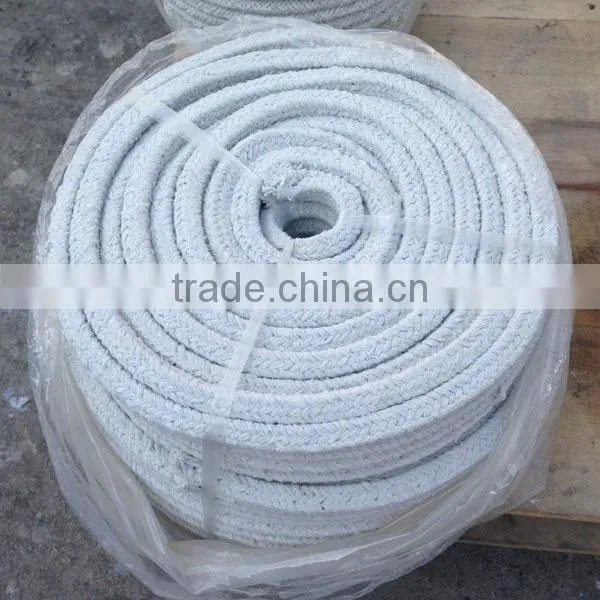

| Packaging Detail: | 10kg/roll, 50kg/woven bag |
| Delivery Detail: | 15days |
Specifications

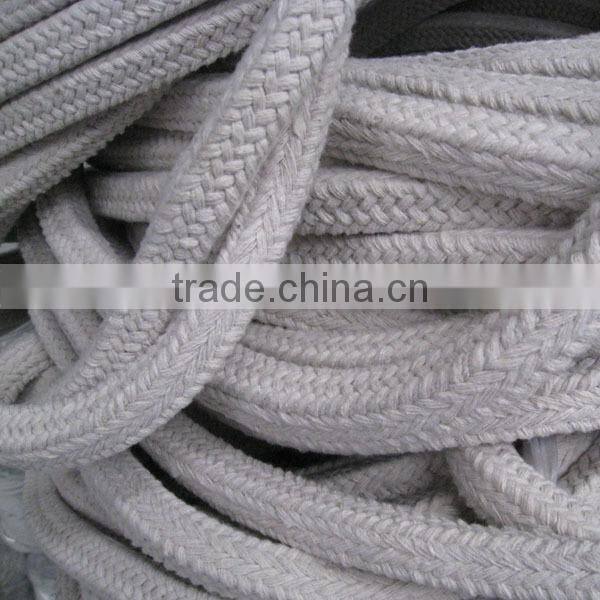

1.Ceramic Fiber Square Rope
2.Chemical Composition: AL2O3+SiO2
3.Working Temperature: 650C~ 1000C
Description:
It includes three styles: twisted, round braided and square braided. All are made of our high quality ceramic fiber yarns. They can be used for high temperature applications up to 1000° C. The rope is reinforced with fiberglass filament, and optional stainless steel wire. It contains a certain amount of binder material which is normally burned at lower temperature and does not affect the insulation property.
Specification:
Ref. No. |
Reinforcement |
Temp. resistance (C degree) |
Diameter (mm) |
Braiding way |
TCMF-102G |
Glass filament |
650 |
5 up to 60 |
2 or 4 tracks |
TCMF-102S |
Glass filament+s.s.wire |
1000 |
5 up to 60 |
2 or 4 tracks |
Application:
They the perfect material for door seals or caulking for ovens, furnaces and boilers, expansion joints, cable or pipe wrapping, high temperature seals or gaskets. These products have been widely used in welding, foundry works, aluminum and steel mills, boiler insulation and seal, exhaust systems, shipyards, refineries, power plants and chemical plants. They are also used as the core in tadpole gaskets. The three different styles are designed to fit different application needs: twisted rope is a soft rope, while square and round braid are more dense and solid.
