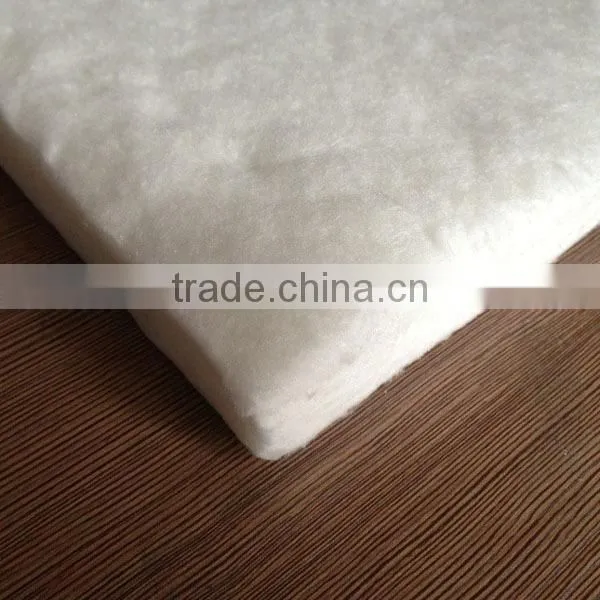

Tongchuang Ceramic Fiber Blanket

Name: Tongchuang Ceramic Fiber Blanket
Brand: Tongchuang
Price: Negotiable

FOB Price

Negotiable / Ton

1 Ton(Min.Order)

Supply Ability 4000 Ton / Tons per Month
Port Ningbo/Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Grade:	HA (High Aluminum)	Application:	Refractory	Thickness:	25-50mm
Width:	610mm	Length:	3600-7200	Chemical Composition:	96-99
Working Temperature:	1000-1350	Fiber Diameter:	3-4.5	Thermal Conductivity:	0.09-0.16
Brand Name:	Tongchuang	Place of Origin:	Zhejiang, China

Product Description

Specifications

made of special ceramic long-fiber,produced by the melting of very pure raw materials in double surface meeding process.

Packaging & Delivery

Packaging Detail:	plastic bag inside,carton or woven bag outside.
Delivery Detail:	15 days after confirmation the order.

CHARACTERISTIC
Excellent thermal stability
Excellent chemistry quality
Resistance to burning
Low thermal conductivity
Low heat storage
Good obstructing voice and mechanism strength
Low shrinkage
Good springiness for fibersConvenient producing and installing

Application:
Joint sealing and filling insulation (kiln car, pipeline, kiln door and so on)
Fiber composite (for example: grinding parcel)
Internal and external lining for industrial furnace
Structure refractory and sponging sounds
Materials for hot filtration
Raw materials for further producing

		Common	Standard	Pure	High Aluminium	Zirconium
Classification temperature()		1100	1260	1260	1360	1430
Work temperature()		<1000	1050	1100	1200	1350
Color		White	Pure white	Pure white	Pure white	Pure white
Density (kg/m³)		96 128	96 128	96 128	128 160	128 160
Permanent linear shrinkage(%)(after24 hours,density 128kg/m³)		-4 (1000)	-3 (1000)	-3 (1100)	-3 (1250)	-3 (1350)
Thermal conductivity (w/m.k) density 128kg/m³)		0.09(400) 0.176(800)	0.09(400) 0.176(800)	0.09(400) 0.176(800) 0.22(1000)	0.132(600) 0.22(1000)	0.76(600) 0.22(1000)
Tensile strength (Mpa) density128kg/m³)		0.08-0.12	0.08-0.12	0.08-0.12	0.08-0.12	0.08-0.12
Chemical Composition (%	AL₂O₃	44	46	47--49	52-55	39-40
	AL₂0₃+SIO₂	96	97	99	99	-
	AL₂O₃+SIO₂+Zro₂	-	-	-	-	99
	Zro₂	-	-	-	-	15-17
	Fe₂O₃	<1.2	<1.0	0.2	0.2	0.2
	Na₂O+K₂O	≤0.5	≤0.5	0.2	0.2	0.2
Size (mm)		Common 720061010-50others up to buyer
