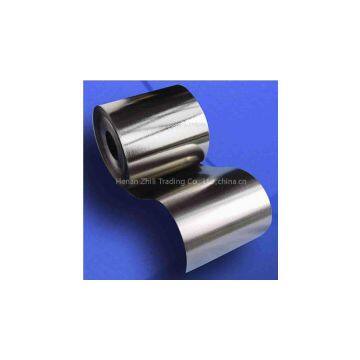

Fe-based Nanocrystalline Alloy Strip
Grade: 1K107 series Alloy Compositions: Fe, Cu, Nb, Si, B, Ni, Co
Tongchuang Nanocrystalline alloy is composed of ferrum, silicon, boron and a small amount of copper, molybdenum, niobium, nickel and cobalt; amongst which copper and niobium are essential elements to obtain the nanocrystalline structure. After annealing treatment with appropriate temperature, the nanocrystalline alloy strip forms crystalline grains with the size of 10-20nm and a dispersed structure. The structure has very excellent magnetic properties, including high Saturation magnetic induction; high magnetic permeability; low coercive force; low loss; good temperature stability, wear resistance, corrosion resistance; as well as lower price with the best performance/price of all metal soft magnetic materials. Nanocrystalline alloy material is cheap, but the magnetic properties can be excellent, almost comparable to the cobalt-based amorphous alloy. It is ideal material for industrial and civil high-frequency transformers, mutual inductors, inductors, and for replacement of permalloy and ferrite products. With the above mentioned magnetic performance characteristics, the Fe-based nanocrystalline alloy has the following advantages in magnetic applications:
1. High Saturation magnetic induction Bs - being capable of reducing the size of transformers
2. High magnetic permeability and low coercive force - being capable of improving the efficiency of transformers and the sensitivity of mutual inductors, reducing the coil distribution parameters, reducing the number of turns of common mode inductors, reducing copper loss
3. Low loss - being capable of reducing the temperature rise of transformers
4. Good stability - being capable of long-term work under working condition of high temperature (130c)
5. Lower price - the best performance/cost of all metal soft magnetic materials.
Fe-based Alloy Strip
Grade 1K101 Alloy Compositions: Fe, Si, B
Features:
high saturation magnetic flux density (Bs≥1.5T); high magnetic permeability; low coercive force, low loss; low excitation current; good temperature stability, wear resistance, corrosion resistance; as well as lower price with the best performance/cost of all metal soft magnetic materials. With the above mentioned magnetic performance characteristics, the Fe-based amorphous alloy has the following advantages in magnetic applications:
1. High saturation magnetic flux density Bs - being capable of reducing the size of transformers
2. High magnetic permeability and low coercive force - being capable of improving the efficiency of transformers
3. Low loss (equivalent to 1/3 ~ 1/5 of silicon-steel sheet) - being capable of reducing the temperature rising of transformers
4. Good stability - being capable of long-term work under working condition of high temperature (130 ℃)
5. Low excitation current - to reduce the copper loss of the primary coil of transformers
6. Lower price - excellent price-performance of metal soft magnetic materials
Applications:
1. Power distribution transformer core (50~60Hz);
2. Intermediate frequency power transformer core (400Hz~20kHz);
3. Filter inductor core;
4. Switching mode power supply transformer core (below 20kHz);
5. Saturation reactor, pulse compressor core;
6. Power factor correction inductor core, air gap inductor core;
7. No air gap inductor core;
