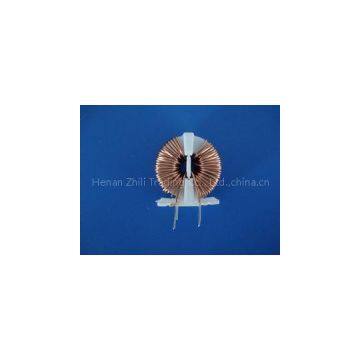

Common Mode Inductor Nanocrystalline Core

Common Mode Inductor Nanocrystalline Core

Product features:

Tongchuang common mode inductor core is made of its self-produced 1K107B ultrathin shear strip. This product has good stability, and the initial magnetic permeability can exceed 120,000, even break through 200,000; it also has excellent frequency characteristic, and the magnetic permeability can reach more than 20,000 when the frequency is 100KHz; under the same circumstance as ferrite common mode inductor performance, it can greatly reduce the volume of magnetic core and the copper loss, and has a better cost performance. Meanwhile, our company selectsbox-packed Core to protection the core.

Product application:

divided into common mode interference and differential mode interference. The interference current of common mode interference in all wires of cable flows towards the same direction in the return circuit formed between these wires and the “ground”; while the interference current of differential mode interference flows in the return circuit formed between signal lines and “ground” wires.

Comparing the shape of Nanocrystalline common mode inductor with that of ferrite common mode inductor (they are of the same filtering effect), it can be found that the Nanocrystalline iron core is less than ferrite in the volume and copper loss

We are a leading nanomaterials company involved in all aspects of the business: manufacturing, research and development, processing, supplying and marketing of nanostructured materials and their dispersions.

No matter if you are looking for Amorphus Ribbon, Nanocrystalline Materials or any other Nanoscale or Amorphus product, we have a vast selection available to fit your needs. See our listing of categories below.

It is sometimes the case that you may not find your desired product in listed amongst the hundreds of items in our catalogue. Not to worry: we will work together with you to research and manufacture a nanostructured material for your specific needs and application. Just contact our sales department, by phone or e-mail, for an individual consultation. Remember:

We are proud to have supplied nanomaterials to many researchers all over the world

*can be prepared according to the specifications and performances required by customers
