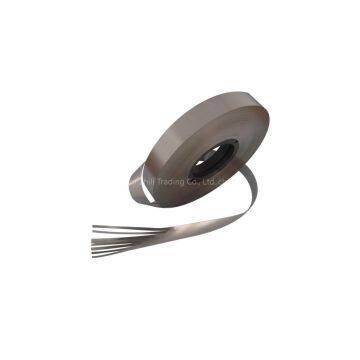

Fe-based Alloy Strip

Grade 1K101 Alloy Compositions: Fe, Si, B

Features:

high saturation magnetic flux density (Bs≥1.5T); high magnetic permeability; low coercive force, low loss; low excitation current; good temperature stability, wear resistance, corrosion resistance; as well as lower price with the best performance/cost of all metal soft magnetic materials. With the above mentioned magnetic performance characteristics, the Fe-based amorphous alloy has the following advantages in magnetic applications:

1. High saturation magnetic flux density Bs - being capable of reducing the size of transformers

2. High magnetic permeability and low coercive force - being capable of improving the efficiency of transformers

3. Low loss (equivalent to 1/3 ~ 1/5 of silicon-steel sheet) - being capable of reducing the temperature rising of transformers

4. Good stability - being capable of long-term work under working condition of high temperature (130 ℃)

5. Low excitation current - to reduce the copper loss of the primary coil of transformers

6. Lower price - excellent price-performance of metal soft magnetic materials

Applications:

1. Power distribution transformer core (50~60Hz);

2. Intermediate frequency power transformer core (400Hz~20kHz);

3. Filter inductor core;

4. Switching mode power supply transformer core (below 20kHz);

5. Saturation reactor, pulse compressor core;

6. Power factor correction inductor core, air gap inductor core;

7. No air gap inductor core;

We are a leading nanomaterials company involved in all aspects of the business: manufacturing, research and development, processing, supplying and marketing of nanostructured materials and their dispersions.

No matter if you are looking for Amorphus Ribbon, Nanocrystalline Materials or any other Nanoscale or Amorphus product, we have a vast selection available to fit your needs. See our listing of categories below.

It is sometimes the case that you may not find your desired product in listed amongst the hundreds of items in our catalogue. Not to worry: we will work together with you to research and manufacture a nanostructured material for your specific needs and application. Just contact our sales department, by phone or e-mail, for an individual consultation. Remember:

We are proud to have supplied nanomaterials to many researchers all over the world

*can be prepared according to the specifications and performances required by customers
