Automobile Side Glass Tempering & Bending Furnace

Automobile Side Glass Tempering & Bending Furnace thumbnail-1
Automobile Side Glass Tempering & Bending Furnace thumbnail-2
Automobile Side Glass Tempering & Bending Furnace photo-1

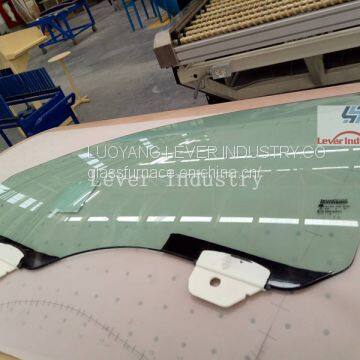

Automobile Side Glass Tempering & Bending Furnace photo-2
US$ 1 - 1 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Lever
Place of Origin:
China
Model Number:
LV-TB-L Series
Contact Supplier Request Quote Chat Now
Luoyang Lever Industry Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
100 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Lever
Place of Origin China
Model Number LV-TB-L Series
Certification UL
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 months
Condition New
Voltage 380KVA
Power(W) 530KW
Machine Type Glass Tempering Furnace

Bending Glass Tempering Furnace / Bending Glass Toughening Furnace / Bending Glass Tempering Machine / Bending Glass Toughening machine / Bending Glass Tempering Oven


1. Machine Application

Continuous Bending Glass Tempering Machine is a special plant used to produce the bent tempered glass, which mainly used in the fields of side windows (sidelites) of automotives, trucks, shower room, furniture, etc. The side door of the automotive should be single curvature. Our customer produced the side doors for BMW, Audi, Toyota, Honda, Hyundai, Peugeot, etc.

ModelMax. Loading AreaMin.Glass SizeThicknessMin.Radius

(mm)(mm)(mm)(mm)
LV-TB1206L1200 x ⌒600150 x ⌒2803～19≧350
LV-TB1608L1200 x ⌒800150 x ⌒2804～19≧450
LV-TB2010L2010 x ⌒1000150 x ⌒2804～19≧500

2. Main Technical Features:

2.1. The bending forming is with servo motors & servo controllers which from Yaskawa, Japan.

2.2. Higher precision and speed arc-changing.

2.3. Most advanced bending forming technology in China. Easy & accurate arc-adjustment. The glass type change could be finished within few minutes.

2.4. Helix matrix structure for heating oven, which can control the temperature of each area independently.

2.5. Full closed heating oven and high quality Insulating materials with top performance which can ensure a minimum power consumption and uniform oven temperature.

2.6. Fault diagnosis system for the heating elements.

2.7. PID temperature control,

2.8. Preventive function for the wrong operation

2.9. Synchronous and asynchronous running of each section

2.10. Power monitoring function

2.11. Suitable for processing clear float glass, patterned glass, reflective glass, low-e glass, etc.

2.12. Standard for processed products: GB15763.5, GB9656, EN12150-1:2000, ECER-43, ANSIZ97.1, etc.
