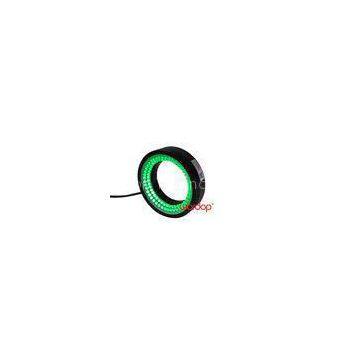

Large LED Ring Light Low Angle for Machine Vision Inspection , Machine Vision System

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Wordop		Place of Origin	China
Model Number	LAR-132

Delivery Time:Small quantity (within 20 pieces ) can be ready with 5-8 working days.
Certification:CE, RoHS

Large LED Ring Light Low Angle for Machine Vision Inspection , Machine Vision System

Product Features

◆Light O.D. of LAR-132 is 132mm,The angle between light and horizontal plane is 15°

◆ High-density LED arrays are used to achieve high brightness.

◆ Direct light is radiated from low angle to show the surface details clearly.

◆ Applicable as a clear incident illumination.

Specification

Color(wavelength)	Red:620-630nm	Green:520-530nm	Blue:460-475nm
White color temperature:6000-7500K	InfraRed:850/940nm	UV:365/385nm
Operating environment(Indoor)	temperature:0~40℃ Humidity:20% to 85% RH(with no condensation)
Life time	White: 30,000hrs, Red: 60,000hrs(Depends on the operating environment, not a guarantee.)
Compatible Control Unit	PS/PS2 Analog Controller, PD Digital Controller, PBT Strobe Controller.
Optional Accessories	1.Diffusion plate, Polarizing plate.
2.Lens attachment ring.
3.DC extension cable:1m/2m/3m
Certificate	Wordop company have gotten CE, RoHS.
Warranty	One year product warranty time, free technical support
Lights development	Provide design and development service according to individual needs of customers. Reach the best image effects.

Model No. Demonstration:

Illumination Structure

Product Lineup Table:
