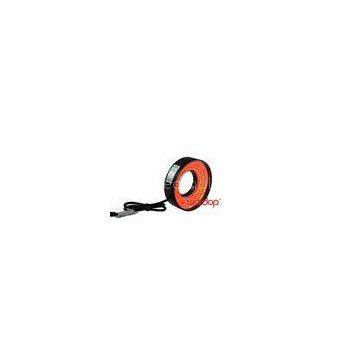

Machine Vision Ring Light With High Intensity LED for Industrial Inspection

Name: Machine Vision Ring Light With High Intensity LED for Industrial Inspection
Brand: Wordop
SKU: 149944386
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Wordop

Place of Origin:

China

Model Number:

HDR-70

Wordop Automation Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name Wordop

Place of Origin China

Model Number HDR-70

Delivery Time:Small quantity (within 20 pieces ) can be ready with 5-8 working days.
Certification:CE,RoHS

HDR-74 Machine Vision Ring Light with High Intensity LED for Industrial Inspection.

Product Features

◆ Light O.D. of HAR-74 is 74mm,The angle between light and horizontal plane is 60°.

◆ Applicable as a clear incident illumination.

◆ Production quality and efficiency are highly improved with breakthrough wave-soldering technology.

Specification

Color(wavelength)	Red:620-630nm	Green:520-530nm	Blue:460-475nm
White color temperature:6000-7500K	InfraRed:850/940nm	UV:365/385nm
Operating environment(Indoor)	temperature:0~40℃ Humidity:20% to 85% RH(with no condensation)
Life time	White: 30,000hrs, Red: 60,000hrs(Depends on the operating environment, not a guarantee.)
Compatible Control Unit	PS/PS2 Analog Controller, PD Digital Controller, PBT Strobe Controller.
Optional Accessories	1.Diffusion plate, Polarizing plate.
2.Lens attachment ring.
3.DC extension cable:1m/2m/3m
Certificate	Wordop company have gotten CE, RoHS.
Warranty	One year product warranty time, free technical support
Lights development	Provide design and development service according to individual needs of customers. Reach the best image effects.

Model No. Demonstration:

Illumination Structure

HDR series angle diagram Illumination structure

(*1 The angle between light and horizontal line)

Product Lineup Table:
