Introduction of Sugar Manufacturing Process
The bagasse produced after extracting the juice from sugar cane is used as fuel to generate steam in factories. Increasingly large amounts of bagasse are being made into paper, insulating board, and hardboard and so on.
Nowadays, harvesting of both cane and sugar beet is done primarily by machine, although in some states it is also done by hand. The harvested cane stalks and beets are loaded mechanically into trucks or railroad cars and taken to mills for processing into raw sugar. Once there, they are cleaned, washed, milled to extract juice, filtered, and purified. The result is a clear, sugar-filled juice.
After being purified, the clear juice undergoes vacuum evaporation to remove most of the water. In this process, four vacuum-boiling cells are arranged in series so that each succeeding cell has a higher vacuum. The vapors from one body can thus boil the juice in the next one, a method called multiple-effect evaporation. Next, the syrupy solution is vacuum-crystallized to form sugar crystals. The remaining liquid is removed using centrifugaling and drying, and the sugar is packaged.

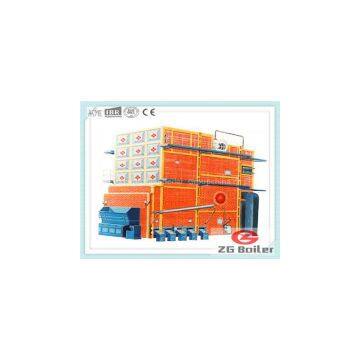

Introduction SHL series field assemble chain grate boiler
Coal Fired Industrial Boilers in Sugar Refinery can offer you a way to save cost during sugar making process. SHL series new type field assemble chain grate boiler is developed by our ZG boiler, with the latest combustion theory product of Xi’an Jiaotong University. This SHL series new type field assemble chain grate boiler is the fourth generation. Choose ZG Boiler, save money and energy during the sugar manufacturing process.
Parameters of SHL series field assemble chain grate boiler
Type: SHL
Capacity:10-35t/h
SHL Pressure: 1.0-2.5Mpa
SHL Temperature: saturation 194-226℃
Product structure SHL series field assemble chain grate boiler
Steam Drum, water drum, water wall, convection bank, economizer, air preheater, flake type chain grate, point warehouse room ventilation structure, sensitive adjustment.
Features SHL series field assemble chain grate boiler
* widely coal applicability
* with water-cooling tubes wall
* adopting downside “a” furnace arch technique to improve fuel combustion
* adopting unique two times wind feeding structure to improve the fuel adaptability and utilization.
* adopts the double or single layout structure to meet the actual needs of users better.
Application:
Used in sugar manufacturing, industrial and mining enterprises and central heating field and so on.
