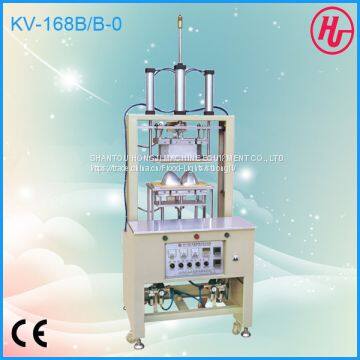

KV-168B/B-0 Elastic Fabric Molding Machine

Function:It is suitable for the molding production of different elastic fabric cups.

Features:

(1) The machine is flexible to change the functions and used in many ways. It is suitable for compressing foam and fabric cups, which makes effective use of the machine itself.

(2) Breaking through the traditional design, it has been adopted guiding poles to fix, equipped with transparent shield and automatic smoke-exhausting device, which is better for operating environment.

(3) The cloth clapping device is steady which can protect the fabric cups from being wrinkled. It is suitable for all kinds of the elastic fabric.

(4) It has automatic adjusting and adapting function, infrared searching lights to location.

(5) Left and right thermostat and upper-and-lower moulds bi-directional driver, which can make good use of the whole space, overcoming the faults such as unevenly heating and electricity-waste.

Technical parameter:

(1) Power supply/Power: 220V/4KW

(2) Specification of the heating pipe: Φ 12×220mm×500W-220V

(3) Dimension of the heating pipe: 335mm ×220mm

(4) Dimension of the machine: 800mm×670mm×2000mm

(5) Dimension of the press frame: 450mm×300mm

(6) Applicable materials: the heat-press molding of the bras and other garments

(7) Applicable moulds: moulds for foam cups and bullet head moulds for fabric cups

(8) Weight: 250KG
