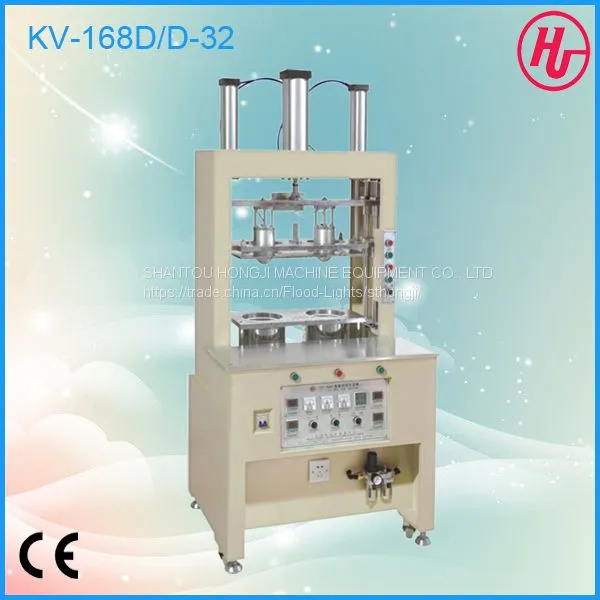

KV-168D/D-32 Bullet Heads Fabric Cup Molding Machine

Usage of machine

It is able to mold rigid fabric cup ( non stretch fabric ) and also elastic fabric cup and space fabric etc. As it is using conical shaped moulds with adjustable molding depth, so it can mold elastic fabric to get suitable cup shape for matching the foam cup shape for stitching & sewing them together.

Machine equipped with air cylinder pressing plates and convinient to control fabric tension and reduce and avoid fabric pulling while molding.

Capacity:

Machine is able to load one set of bullet head aluminum mold with 2 cavities, which can produce 1 pair of fabric cup per cycle within molding time 35 to 45 seconds.

Features:

(1)The bullet head can be replaced freely according to the different needs of the customers’ products.

(2)The machine heats evenly and quickly, it has high production efficiency.

(3)It is easy to operate, saving electricity, time and forming consistently.

(4)The button is operated by hands so as to ensure the security.

(5)It adopts spring-pressing frame to press fabric material, which can effectively control the withdrawing of the fabric and has a good forming effect.

Technical parameter:

Power supply/power: 220V/3.4KW

Specification of the heating piece: Φ 12×250mm×500W-220V

Dimension of the mould table: 450mm×250mm (selection)

Dimension of the machine: 850mm×685mm×1900mm

Applicable materials: the hot-press molding of the fabric

Applicable moulds: the bullet head moulds for fabric cups

Weight: 300KG
