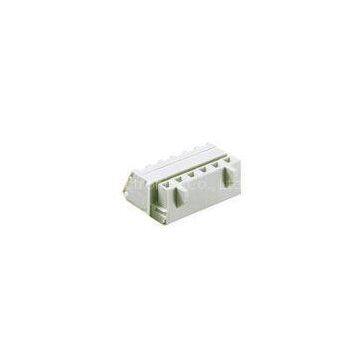

PCB 12A 15A MCS Connector With Spring Cage Clamp PA66 Insulation Material

Supu Electronics Co., Ltd
PCB 12A 15A MCS Connector With Spring Cage Clamp PA66 Insulation Material thumbnail-1
PCB 12A 15A MCS Connector With Spring Cage Clamp PA66 Insulation Material photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SUPU
Place of Origin:
China
Model Number:
SP450
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUPU
Place of Origin China
Model Number SP450
Delivery Time:7-10 working days after the confirmation of the order
Certification:ROHS, ISO9001, COC, CE, CB, TUV

PCB 12A 15A MCS Connector With Spring Cage Clamp PA66 Insulation Material

Quick details


2-24 Angled Female Connectors With Spring-cage Clamp.

Pitch 5.0mm/0.197in.

 250V 12A 15A.

Wire Range 0.2-2.5mm2/24-14AWG

Applied in PCB


Order No.:450656(Light-Grey)

◆ as PCB Connectors,
◆ as feed-through plug connector,
◆ as plug connectors on rail-mounted terminal blocks.
◆ as plug-in connection for flying leads for different types of assembly,
◆ Applied in PCB, heat pump controller, the door control of a lightrail

Specifications:

Article:

2-24 Angled Female Connectors With Spring-cage Clamp

Pitch:

5.0mm/0.197in

IEC

UL

CSA

Rated Voltage:

 250V

300V

300V

Rated Current:

12A

15A

15A

Wire Range

0.2-2.5mm2/24-14AWG

Available Poles:

2-24

Strip length (mm/in):

8-9mm/0.33 in

Wires:

Applied for any kind of wires

Connect Ways:

spring-clipping

Peak Voltage:

4.0KV

Weight:

g

Pollution Severity:

3

UL94 Insulation Material:

V 0 or V 2

Insulation Material:

PA66

Color:

Light-Gray

Packing:

100PCS

Attachment:
Attachment Name Order NO.
 22  222  22
