Straight Solder Pin 24 - 12AWG MCS Connector , Pitch 5.0mm PA66

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SUPU		Place of Origin	China
Model Number	50 PCS

Product Description

Delivery Time:4-14 working days after the confirmation of the order
Certification:ROHS, ISO9001, COC, CE, CB, TUV

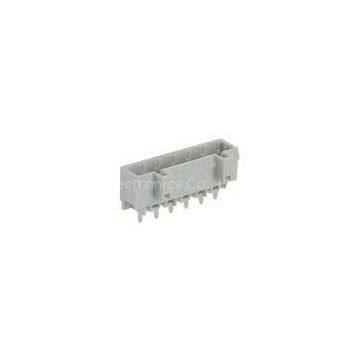

Straight Solder Pin 24 - 12AWG MCS Connector , Pitch 5.0mm PA66
Quick details
2-24 Straight solder pin

Pitch 5.0mm/0.197in.

300V 12A 10A

0.2-2.5mm2/24-12AWG.
2-24 Straight solder pin
Order No.:450706(Light-Gray)

◆ As PCB Connectors,
◆As feed-through plug connector,
◆ As plug connectors on rail-mounted terminal blocks.
◆ As plug-in connection for flying leads for different types of assembly,
◆ Applied in PCBs, heat pump controller,the door control of a lightrail.

Specifications:

Article:	2-24 Straight solder pin
Pitch:	5.0mm/0.197in
	IEC	UL	CSA
Rated Voltage:	300V	300V	300V
Rated Current:	12A	10A	10A
Wire Range	0.2-2.5mm2/24-12AWG
Available Poles:	2-24
Strip length (mm/in):	8-9mm/0.33 in
Wires:	Applied for any kind of wires
Connect Ways:	spring-clipping
Peak Voltage:	4.0KV
Weight:	g
Pollution Severity:	3
UL94 Insulation Material:	V 0 or V 2
Insulation Material:	PA66
Color:	Light-Gray
Packing:	100PCS
