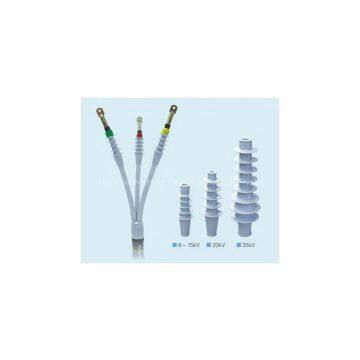

12-20kV(24) Silicone Rubber Pre-mould Indoor(outdoor) Termination


Applications:

Pre expanded indoor termination for 12-20kV (24) kV, single &3 core plastic insulated cable with tape/wire screen and with or without armour.


Features:

Quick, easy and safe installation.

High mechnical strength.

Wide cross section range.

Compact dimensions.

Unlimited shelf life.


12-20kV (24) kV Silicone Rubber Pre-mould Indoor(Outdoor)Termination Technical Data


Test sequence Item Requirements acc. to IEC 60502.4

12-20kV (24) kV IEC 60502.4

1 AC withstand voltage test (in air and ambient temperature)   AC for 5 min. at 54kV. No breakdown, No flashover PASS

2 Partial discharge 10pC max. at 20kV PASS

3 Impulse withstand test 10 impulses of each polarity at 125kV PASS

4 Heating cycles  in air 30 cycles at  95℃--100℃ and 30kV in air, No breakdown, No flashover PASS

5 Heating cycles under water 30 cycles at  95℃--100℃ and 30kV under water, No breakdown, No flashover PASS

6 Partial discharge at  95℃--100℃ 10pC max. at 20kV PASS

7 Thermal short-circuit (screen) No visible deterioration at 3.0 kA, 1s PASS

8 Thermal short-circuit (conductor) No visible deterioration at 23.0 kA, 2s PASS

9 Dynamic short-circuit No visible deterioration at 81.0 kA, not less than 10 ms PASS

10 Impulse withstand test at  95℃--100℃ 10 impulses of each polarity at 125kV PASS

11 AC withstand voltage test AC for 15 min. at 30kV. No breakdown, No flashover PASS

Table of specification of 12-20kV (24) kV Silicone Rubber Pre-mould Indoor(Outdoor)Termination


Voltage

1&3 core indoor(Outdoor)

Pre-mould termination

Suit for cable Section (mm 2 )

Insulation OD

of Applicable Cables

12/20kV (24) I(O)CP-20/3(1).1# 35～50 19.0～21.5

I(O)CP-20/3(1).2# 70～95 21.5～24.5

I(O)CP-20/3(1).3# 120～150 24.5～27.5

I(O)CP-20/3(1).4# 185～240 28.0～31.0

I(O)CP-20/3(1).5# 300～400 32.0～36.0

I(O)CP-20/3(1).6# 500～630 37.5～42.5
