Brand Name histe
Place of Origin China
Model Number 003

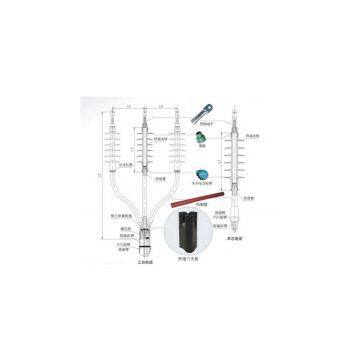

8.7-15kV(17.5) Silicone Rubber Pre-mould Indoor(Outdoor)Termination


Applications:

Pre expanded indoor termination for 8.7/15(17.5)kV, single &3 core plastic insulated cable with tape/wire screen and with or without armour.


Features:

Quick, easy and safe installation.

High mechnical strength.

Wide cross section range.

Compact dimensions.

Unlimited shelf life.


8.7-15kV(17.5) Silicone Rubber Pre-mould Indoor(Outdoor)Termination Technical Data


Test sequence


Item


Requirements acc. to IEC 60502.4


8.7/15(17.5)kV


IEC 60502.4


1


AC withstand voltage test (in air and ambient temperature)


AC for 5 min. at 39kV. No breakdown, No flashover


PASS


2


Partial discharge


10pC max. at 15kV


PASS


3


Impulse withstand test


10 impulses of each polarity at 95kV


PASS


4


Heating cycles  in air


30 cycles at  95℃--100℃ and 22kV in air, No breakdown, No flashover


PASS


5


Heating cycles under water


30 cycles at  95℃--100℃ and 22kV under water, No breakdown, No flashover


PASS


6


Partial discharge at  95℃--100℃


10pC max. at 15kV


PASS


7


Thermal short-circuit (screen)


No visible deterioration at 3.0 kA, 1s


PASS


8


Thermal short-circuit (conductor)


No visible deterioration at 23.0 kA, 2s


PASS


9


Dynamic short-circuit


No visible deterioration at 81.0 kA, not less than 10 ms


PASS


10


Impulse withstand test at  95℃--100℃


10 impulses of each polarity at 95kV


PASS


11


AC withstand voltage test


AC for 15 min. at 22kV. No breakdown, No flashover


PASS



Table of specification of 8.7-15kV(17.5) Silicone Rubber Pre-mould Indoor(Outdoor)Termination

Voltage 1&3 core indoor(Outdoor)

Pre-mould termination Suit for cable Section

(mm 2 ) Insulation OD

of Applicable Cables

8.7/15kV


I(O)CP-10/3(1).1#


35


16.2～18.2


I(O)CP-10/3(1).2# 50 17.8～19.6

I(O)CP-10/3(1).3# 70 19.5～21.0

I(O)CP-10/3(1).4# 95 20.5～22.5

I(O)CP-10/3(1).5# 120 22.0～24.3

I(O)CP-10/3(1).6# 150 23.5～25.8

I(O)CP-10/3(1).7# 185 25.0～27.4

I(O)CP-10/3(1).8# 240 27.0～29.5

I(O)CP-10/3(1).9# 300 29.5～32.0

I(O)CP-10/3(1).10# 400 32.5～34.8

I(O)CP-10/3(1).11# 500 34.0～37.5
