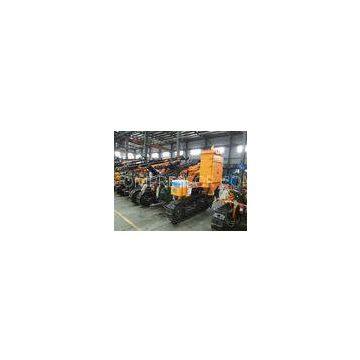

Crawler Drilling Rig With Dust Catcher for Quarry , Highway , Water and Electricity

Delivery Time:15DAYS AS GOT THE DOWN PAYMENT
Certification:ISO9001
Mining portable crawler drilling rig with dust catcher KH3  Dia hole:80-115mm  depth:30m High torque crawler drilling rig from China manufacturer

1, Safe and stable traveling system of   Crawler Drilling Rig

2, Powerful and reliable engine of  Crawler Drilling Rig

3, Mew type boom of  DTH Crawler Drilling Rig

 4, Powerful feeding and rotating system of crawler drilling rig

Working site and useage

1.   This series machine are used in a wide variety of Quarry ,Highway , Water and electricity , Surface mine and deep hole joint pipe drill work on the building project etc.

 2.  This series drilling rigs with air compressor,hammer together work , To blasting horizontal hole ,vertical holes ,inclines holes .

Advantages

Metal crawler mounted, adapting to various terrain Solid structure, practical and high efficiency 2-speed working rev, meet your various need Hydraulic winch, dependable to work 45 HP 2-cylinder diesel engines, powerful to drill YL series crawler mounted DTH drilling rigs are ultimate combination of performance and economy DTH system delivers the highest-possible drilling performance at low running cost. DTH rigs used in variety heavy industry, such as to drill blasting holes like small to medium mining projects, national defnse projects, irrigation projects, road construction and etc. YL series down-the-hole drills are ideal equipment for down-hole blasting. Equiped with Kaishan new designed high efficency dust collector

Specifications

Dia.of hole	80-115mm
Optium drilling depth	30m
Working pressure	7-14bar
Air consumption	13-18m3/min
Ground clearance	290mm
Feed power	5000N
Lift power	15KN
Speed of rotator	0-65rpm
Rotation torque	983N·M
Climb capacity	25o
Traveling speed	0-2.5km/h
Dimensions	4100×2080×2020mm
Weight	3500KG
Diesel	33KW
Drilling Components
1.Hammer	CW930
2. Dia. Of rod	Φ60mm & Φ76mm
2.Length of Rod	3m
3. Dia.of Bit	Φ70-100mm

Summa

1. Adopt famous 4 cylinder diesel engine as driving force which has

advantages of large power, small volume, small vibration and reliable operation.
2. Adopt patent diesel engine air inlet regulating device

(Patent No. : 200820087606.3) and desert air filter three-stage filter. That strengthens the mobile drilling rig’s adaptability to severe

environment and lengthened the diesel engine’s service life.
Optimally designed luffing mechanism and round drilling boom with the advantages

of neoteric structure and easy maintenance greatly improves the drilling hole’s

coverage area. That also makes low-order horizontal hole drilling available

Our equipments have been exported to more than 100 countries all around the world and gain a good reputation both at home and abroad. We have established cooperationrelationship  with many universities to update technology and  meet various needs from our customers.
