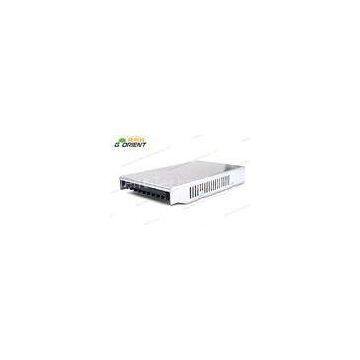

168W Single Output Switching Power Supply 4.2V 40A 100% Guarantee CE Approved

Shenzhen G-Orient Technology Co.,Ltd
168W Single Output Switching Power Supply 4.2V 40A 100% Guarantee CE Approved thumbnail-1
168W Single Output Switching Power Supply 4.2V 40A 100% Guarantee CE Approved photo-1
Negotiable MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
G-ORIENT
Place of Origin:
China
Model Number:
NHI200-4.2-A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name G-ORIENT
Place of Origin China
Model Number NHI200-4.2-A
Delivery Time:10 working days after received your payment
Certification:ISO9001 / CE / ROHS / FCC



168W single output switching power supply 4.2V 40A 100% Guarantee CE approved


Applications:
* indoor and outdoor advertising screens
* Stage
* Military project
* Communication security equipment
* urban landscape lighting
* LED Lighting
* New energy and other Various industries


Competitive Advantage:
* Ultra-low start up temp.(- 30℃)
* High efficiency up to 85%
* Protections:Short circuit / Overload / Over voltage / Over temperature
* Ultra-thin 30mm
* Small size,ultra-light and easy to install


Specifications:

Switching power supply

 NHI200-4.2-A

 OUTPUT

DC Voltage

 4.2V

Current Range

 0~40A

Rated Current

 40A

Rated Power

 168W

Ripple & Noise(max.)

 <250mVp-p

Voltage ADJ.Range

 3.78~4.62V

Voltage Tolerance

  2.0%

Line Regulation

  0.5%

Load Regulation

  1.0%

Setup,Rise Time

 1000ms,50ms/230VAC

Hold up time

 20ms/230VAC

 INPUT

Voltage Range

 200-240VAC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 83-88%

AC Current

 2.5A/230VAC

Inrush Current(max.)

 55A/230VAC

Leakage Current

 < 3.5mA /240VAC

 Protection

Over Load

 105 ~ 150% rated output power

 Protection type: Constant current limiting,recovers   automatically after fault condition is removed

Over Voltage

 4.83 ~ 5.88V

 Protection type: Shut down O/P voltage,re-power on to recover

Over Temperature

 100℃ 5℃

 Protection type: Shut down O/P voltage,recovers automatically after temperature goes down

 Environment

Working Temp.

 -40 ~ +60℃ (Refer to output load derating curve)

Working Humidity

 20 ~ 90% RH, non-condensing

Storage Temp., Humidity

 -40 ~ +85℃, 10 ~ 95% RH

Temp.Coefficient

 0.03%/℃ (0 ~ 50℃)

Vibration

 10 ~ 500Hz, 5G 10min./1 cycle,60min. Each along X, Y, Z axes

 Safety

Safety standards

 UL60950-1 approved

Withstand Voltage

 I/P-O/P:3KVAC  I/P-FG:1.5KVAC   O/P-FG:0.5KVAC

Isolation Resistance

 I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH

 Others

MTBF

 271.9K hrs min. MIL-HDBK-217F(25℃)

Dimension

 190*85*30mm (L*W*H)

Packing

 0.8kg; 20pcs/16Kgs

 Note

1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20Mhz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47 uf parallel capacitor.

3. Tolerance: includes set up tolerance,line regulation and load regulation.

4. Please connect positive pole of input voltage with mark”L” of terminal block,connect negative pole of input voltage with mark”N” of terminal block,using DC voltage for input voltage




Features:
* Protections:Short circuit / Overload / Over voltage / Over temperature
* Cooling by free air convection
* Withstand 300vac surge input for 5 second
* Built-in constant current limiting circuit
* 100% full load burn-in test
* Fixed switching frequency at 90KHz
* Low cost,high reliability
* 2 years warranty


Company Advantage:
* High quality products
* Standardized production process
* Short lead t
