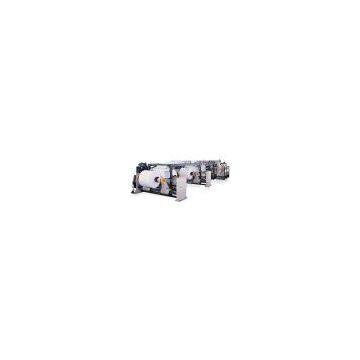

Paper Sheeter/paper Sheeting Machine/roll to Sheet Cutter

AC servo precision high speed sheet cutter

CHM-1400/1700/1900

This series of machine is used to cut the paper roll into paper sheets. It adopts advanced technology of British and it is driven by AC servo motors, the high cutting speed reaches 300 cuts /min. And it can cut 8 paper rolls at one time. It is also equipped with automatic deflection rectify and antistatic device. The paper feeding and delivering units are automatic with the hydraulic system. The human and machine interface system could make operation become much easy and more convenient.

Model: CHM-1400/1700/1900
MAIN SPECIFICATIONS:
weight of paper: 60-550gsm
Cutting accuracy: 0. 5mm tolerance allowed
Max. Cutting speed: 300sheets/min, operation speed depends on cut length, paper quality, paper grade&grammage.
Max. Cutting meter speed: 300m/min
Cutting length range: 450-1450mm
Max. Diameter of reel: 1800mm
Sheet stack height: 1300mm
Max. Width of cutting paper: 1400mm/1700mm/1900mm

MAIN WORK SECTIONS:
Cutting section:

1.       Computer operation interface, easy to operate.
2. High precision special alloy steel knife
3. Cutting accuracy is 0. 5mm tolerance

Paper feeding section:
1. Double limbs oil pressure shaftless paper rack
2. Auto tension control system
3. Auto paper edge guiding system

Electric control section:
1. PLC control system
2. AC servo driving motor
3. High precision encoder&cutting
4. Long endurance

Slitting knife:
1. Three sets of slitting knives
2. Used for trimming and middle slitting
Paper conveyer system
1. The number of overlapping sheets can be adjusted by this section.
2. The single sheet outlet can be adjusted.
