Aerated Concrete Equipments

Aerated Concrete Equipments

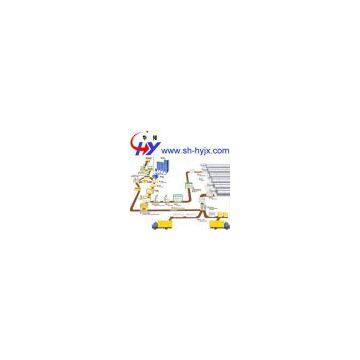

First of all, does and match the stored raw materials by measuring ingredients(1)and then feed them into the pouring mixer.after even mixing (2)and then pour them into the mould(3)to be reinforced by steel bars for slabs(19). After pre-curing(4)under a certain temperature for a period of time, the green body will reach a certain of hardness,and then the mould and the green body will be hanged to the cutting machine by overturned hanger.overturned hanger has the following functions: overeturning the mould in the air with an angel of 90(5)one board of the mould become the bottom plate to support the green body until steam curing finished, b hanged them to the cart or the cutting support to open mould or demoulding(6),the demoulded frame and the returned board(16)will be re-formed mould again(17)and will be ready for next pouring after cleaning and oil spraying(18).the green body will be cut in six sides on the cutting machine;a. First, he vertical cutting for both sides of the green body(7),b,Then the horizontal cutting longitudinally(8);c,And the horizontal cross or chopper-like cutting at last(9).Semi-finished products and the bottom board will be hanged in the autoclaved cars by the semi-finished hanger(10),and then grouped into autoclaved kettle for steam-cured(11)under high temperature(12).After that the finished product will leave the autoclaved kettle(13),and then the finished hanger will stack the finished products or loaded(14) and packed(15),while, the board will return.
