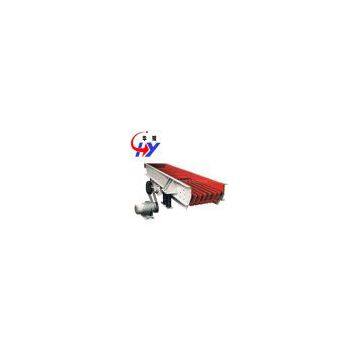

Help CenterGZD/ZSW Vibrating Feeder Series
Related Products
Advantages and characteristics
1. Simple and reasonable structure
2. Easy maintenance
3. Continuous and uniform feeding
Brief Introduction
Brief Introduction Our feeder series have two types: Vibrating feeder and linear feeder.
1. Vibrating feeder series have two engines. Users can adjust vibrating frequency of feeder freely so as to completely control feeding speed of stone material and ensure smooth operation of production line.
2. Linear feeder has feature of stable vibration, reliable operation and long service life, can feed crushing machine continuously and has primary sieving on materials.
3.they is widely used in crushing and screening plants of mining, construction materials, silicate and chemical industry.
|
Model |
Hopper size(mm*mm) |
Max. Feed size(mm) |
Capacity(t/h) |
Electric shaft rotate speed(r/min) |
Electric motor(kw) |
Weight (t) |
Overall dimensions(mm) |
|
GZD-250*75 |
2500*750 |
300 |
50-80 |
|
1.5*2 |
1.29 |
2580*1430*600 |
|
GZD-300*90 |
3000*900 |
450 |
80-100 |
|
3.0*2 |
2.96 |
3050*1430*1550 |
|
GZD-370*100 |
3700*1050 |
500 |
100-150 |
|
3.7*2 |
3.7 |
3980*1878*866 |
|
GZD-490*110 |
4900*1100 |
580 |
120-280 |
|
5.5*2 |
4 |
5200*1900*950 |
|
GZD-500*120 |
5000*1200 |
600 |
200-400 |
|
5.5*2 |
5.2 |
5450*2000*900 |
|
ZSW-380*96 |
3800*960 |
500 |
100-160 |
500-720 |
11 |
4.21 |
3882*1684*1340 |
|
ZSW-490*110 |
4900*1100 |
580 |
120-280 |
500-800 |
15 |
5.41 |
4957*1841*1365 |
|
ZSW-590*110 |
5900*1100 |
600 |
200-350 |
500-800 |
22 |
6.05 |
6000*1841*1365 |
|
ZSW-600*130 |
6000*1300 |
600 |
400-5560 |
500-800 |
22 |
7.5 |
6028*2580*2083 |
