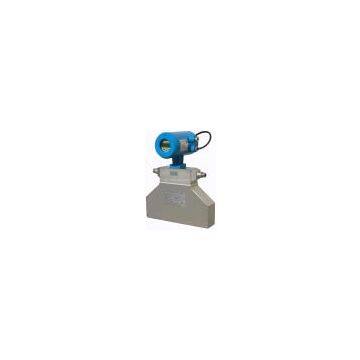

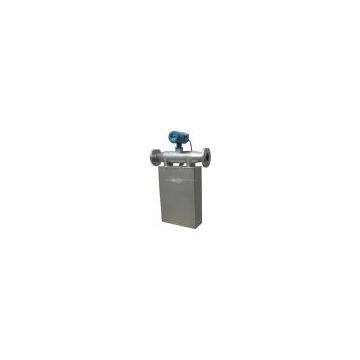

Coriolis Mass Flow Meter

Fhc Ind. Limited

US$ 3442 - 3442 MOQ: 1 Piece

Key Specifications

Brand Name:

Place of Origin:

China

Model Number:

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Place of Origin China


The structure of our Coriolis Mass Flow Meters was consisted of a pair of bended tubes. The principle is to detect Coriolis force forced a pair of tubes from inner mass flow by fluid. Our Coriolis Mass Flow Meters offer direct mass flow, volume flow, density, and temperature measurement of liquids and slurries — without the need for additional equipment, manual calculations, or estimations.

	Items	Technical Parameters
Operatingcondition	Medium	Liquid (including all kinds of serous fluid and mixed liquid)
	Fluid temperature	-40℃~+200℃
	Ambient temperature	0℃~+40℃
	Density range	0.2 g/cm3~3.5g/cm3
	Environmental humidity	≤90% RH, non condensation
	Operating pressure	≤ 4.0MPa
	Atmospheric pressure	86kPa~106kPa

Mass sensor	Model number	FHC-CMF I-DNXX
	Mass flow accuracy	±0.2%
	Mass flow repeatability	±0.1%
	Density accuracy	±0.002g/cm3
	Temperature accuracy	±1℃
	Measured pipe materials	316L stainless steel
	Contact modes	Flange or thread connection
	Explosion-proof types	Essential safety	Exib[ib]IIBT4
		Composite	Exdib[ib]IIBT4

Mass transmitter	Model number	FHC-CMF I
	Output of current	4mA~20mA
	Output of frequency /pulse	0Hz~10kHz
	Power supply	24V DC or 220V AC±10%, 50Hz±5%
	Power consumed	<15W
	Explosion-proof types	Essential safety or Composite
	Contactor capacity of the batch Control relay	24V/0.1A
	Display	Display the instantaneous flow and flow cumulative flow, temperature, density and so on
	Contactor form	All-time open (can be changed to all-time close according to users)
