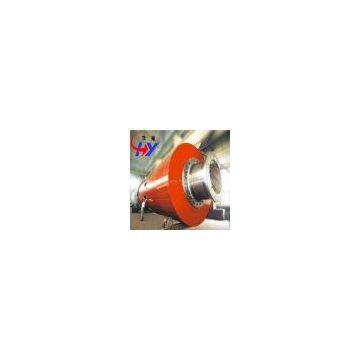

Ball Mill
US$ 10000 - 10000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HY
Place of Origin:
China
Model Number:
HY
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Brand Name
HY
Place of Origin
China
Model Number
HY
Ball Mill
This machine is made up of feeding part, discharging part, gyre part, transmission part, and so on.
The hollow axis adopts the cast steel and the lining can be replaced, the rotary big gear is processed from cast rolling gear, the barrel body ID wearable well and bears wearable scale board. This machine runs steadily and works reliably.
Brief introduction
Ball mill is an efficient for grinding many materials into fine power. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding the dry process and the wet process. It can be individual into tabular type and flowing type according to different forms of discharging material.
This machine is made up of feeding part, discharging part, gyre part, transmission part, and so on.
The hollow axis adopts the cast steel and the lining can be replaced, the rotary big gear is processed from cast rolling gear, the barrel body ID wearable well and bears wearable scale board. This machine runs steadily and works reliably.
Brief introduction
Ball mill is an efficient for grinding many materials into fine power. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding the dry process and the wet process. It can be individual into tabular type and flowing type according to different forms of discharging material.
|
Model |
Rev.of Barrel (rpm) |
Ball Lead(mm) |
Feed Size (mm) |
Finished Size(mm) |
Capacity(t/h) |
Power(kw) |
Weight (t) |
|
900*1800 |
38 |
1.5 |
<=25 |
0.075-0.89 |
0.65 |
18.5 |
3.6 |
|
900*3000 |
38 |
2.7 |
<=25 |
0.075-0.89 |
1.1-3.5 |
22 |
4.6 |
|
1200*2400 |
32 |
3.8 |
<=25 |
0.075-0.6 |
1.5-4.8 |
45 |
12.5 |
|
1200*3000 |
32 |
5 |
<=25 |
0.074-0.4 |
1.6-5 |
45 |
12.8 |
|
1200*4500 |
32 |
7 |
<=25 |
0.074-0.4 |
1.6-5.8 |
55 |
13.8 |
|
1500*3000 |
27 |
8 |
<=25 |
0.074-0.4 |
2-5 |
90 |
17 |
|
1500*4500 |
27 |
14 |
<=25 |
0.074-0.4 |
3-6 |
110 |
21 |
