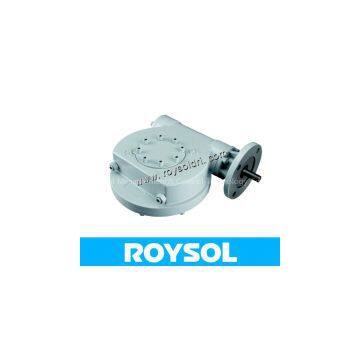

RW Part-turn worm gearbox

Introduction

Roysol RW series Part-turn Worm Gearbox is precise device with high quality and safety, intended to reduce the speed and increase the torque. It is easy to process axis hole and key groove because of the removable sleeve.

Characters

1.Totally enclosed gearing

2.Grease filled for longer life

3.Comprehensive gear ratios for different application

4.Removable output sleeve

5.Optional travelling sleeve

6.Adjustable stopper( ±5°)

7.Optional flange to suit for different type of valve

Applications

RW series part-turn worm gearboxes are used for manual and electric applications of ball valves, butterfly valves, plug values and dampers.

Options

IP68 Radial arm

Stage reducer

Travelling nut

Stopper Input flanges suit for electric actuator

Operating Environment
RW series Part-turn Worm Gearboxes are with good mechanical quality and steady operating performance which apply to deal with variety climate and temperature. We strive to develop RW series Part-turn Worm Gearboxes to meet higher demands.

● Enclosure: IP67 (IP68, IP65 optional)

● Working Temperature: From-40℃ to 120℃ ( -40℉ to 248℉)

● Painting: Sliver grey (Customization)

Connect with valve

The flange connecting to valve is according to ENISO5210 or DIN3210(Customization).
