Stainless Steel Swing Door Operator Electric Operator Underground

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CIROLLA		Place of Origin	China
Model Number	412

Product Description

Delivery Time:25-30days
Certification:CE/CCC/ SGS

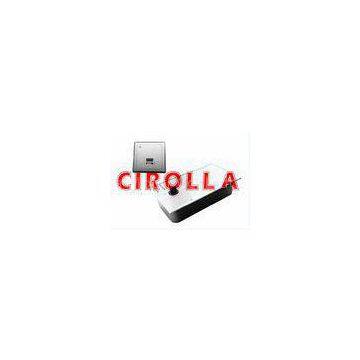

Stainless Steel Swing Door Operator Electric Operator Underground

Specifications:

Door motor spec:

Type	Brushless
Voltage	24VDC
Power	75W
No-load speed	9rpm
On-Load speed	7.5rpm
Noise level	≤40dB
Gear Ratio	1:248
Protection class	IP55
Weight	8.5kg
Lifetime	3million cycles,10years
Application	Automatic Floor Spring

Automatic floor spring door data:

Automatic floor springs	Option 1	Option 2
MAX DOOR WEIGHT	120kg	180kg
MAX DOOR WIDTH	1000mm	1200mm
MAX TORQUE	75Nm	130Nm
WEIGHT	9kg	9kg
INSTALL WAY	ground buried
VOLUME	less than 50dB
ELECTRONIC LOCK OUTPUT	DC 12V always open /always close contact
OPEN AND CLOSE TIME	3-8 sec	3-8 sec
OPEN RANGE	45°to 135°can be adjusted
POWER	220V±10%
RATED CURRENT	less than 1A
MAX Power consumption	35W	45W
PENDING POWER CONSUMPTION	less than 2W
CONCTROL DEVICE	Specialized super heterodyne receivers, effective distance more that 50mm,learn model code.

WORK TEMPERATURE	(-40 to +80)
LINE INDEX	continuum running 3 million above no obstacles
PROTECTION GRADE	IP55
MACHINE SIZE	L320mmW185.6mmH80mm
CONTROLLER SIZE	L225mmW195mm70mm

Description:

The Floor Spring Door is equipped with an adjustable heavy-duty spring and powerful Brushless DC motor. Because of this feature, the Auto Swing can be used to operate larger, heavier doors in windy conditions. The Auto Swing door operators have been engineered to open doors for people with disabilities and the elderly. The one way clutch allows the door to be opened manually with incredible ease. The Auto Swing incorporates a concealed heavy duty adjustable door stop, therefore eliminating the need for external stops.

Applications:

Spring Floor Doors

Competitive Advantage:

1. Adopting double-spring design, opening lightly and closing smoothly, prolonging service life.
2. Inside pressure reducing value: Using to prevent the destruction of the floor spring or oil
Leakage on occasions that the door is closed by strong pressure or wind force.
3. General design, suitable for left or right hand to open the door in single and both sides.
4. Use low temperature frostbite hydraulic oil, ensuring the normal door-closing
