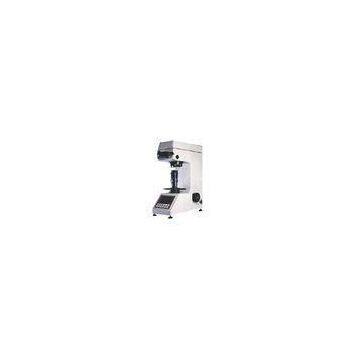

Big LCD Screen HVS-50 Digital Vickers Hardness Tester AC110V10% 60Hz with RS232 Interface

Big LCD Screen HVS-50 Digital Vickers Hardness Tester AC110V±10% 60Hz with RS232 Interface

Details:
Low Load Vicker’s Hardness Tester with Digital Display is a new hi-tech product integrating mechanical

and photoelectrical technologies.  As a substitute of traditional small-load Vicker’s hardness tester, it

features in easy operation and good reliability.

The following highlight some key features and functions:
--Integration of computer programming technology, high resolution optical measuring system and

photoelectrical technique;
--Soft key input;
--Light source adjustment;
--Selectable testing model, conversion tables, pressure-holding time, file number input and data saving

functions;
--Big LCD screen to display testing model, testing pressure, indention length, hardness values,    pressure

holding time and numbers of tests;
--Date recording tst results recording and data processing;
--Printing output function;
--RS232 interface for PC connection;
--Camera for indention photographing and metallography

The tester is specially designed for testing minute, thin samples or parts after surface coating.  For research institutes, factories labs and QC departments, this is an ideal hardness testing instrument for research or measuring purposes.

Specifications

MODEL                                                     HVS-50
TEST LOADN(kgf)                               9.8(1.0) 49(5.0) 98(10.0) 196(20.0)  294(30.0) 490(50.0)
Loading mechanism                           Automatic loading and releasing method
Load applying speed                          0.16--0.19mm/sec
DWell time                                        5--60sec
Magnific Aation of microscope           For measurement:100x (objective 10x Eyepiece10x)
asuring length                       0.65mm
asuring unit                           0.25μm
Max.height of specimen                    160mm
Max.depth of specimen                     135mm
Text range                                        5HV1--2500HV50
Brightness of indention                      Provided
Hardness conversion                       For\"S\"model only:Provided all kinds of data conversion by using menu
Printer                                            For\"S\"model only:Provided
Electricity loss protection device      For\"S\"model only:Provided by lithium battery
Computer communication               For\"S\"model only:Provided with RS-232C output
Contour size                                 (650X540X270)mm
Weight                                         45kg
Power supply                               overseas:AC110V±10%60Hz

Standard Accessories Table
ITEM MODEL:  HVS50
Vickers indenter: 1
Test table(big, medium, small):  1
Weight:  4
Horizontal regulating screw:  4
Power:  1
cordVickers test block(high, medium): 2
Back up bulb:  2
Measuring microscope: 1
object lens:  10xo￠25x 10x/1
Certification of Fitness: 1
Product Operating Manual: 1
Printer Operating Manual: 1
　

Optional Specification & Accessories
Foripate test table     Cylindrical test table     Fine specimen measuring test table
X-Y plotter       Gradienter     Knoop indenter     DX3900Shuma camera or DE-3000 model camera
Main body of photographic instrument Linker         Shutter line           Magazine
Special single page magazine       Photographic eye piece
